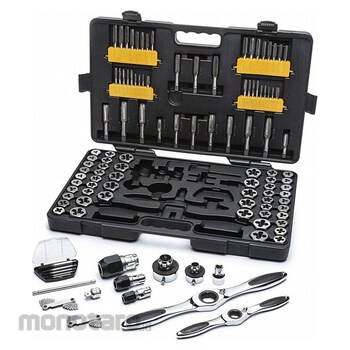

GEARWRENCH Tap & Die Set 82812 M3x0.5 Min. Tap Thread Size Tap/Die Sae/Metric NPT 1set(114pcs)

Name: GEARWRENCH Tap & Die Set 82812 M3x0.5 Min. Tap Thread Size Tap/Die Sae/Metric NPT 1set(114pcs)
Brand: GEARWRENCH
SKU: S040259000
Price: 13999900 IDR
Availability: InStock

#Nomor SKU S040259000

GEARWRENCH

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	82812
Unit	1set(114pcs)
UNSPSC	23153305
Number of Pieces	114
Number of Taps	48
Number of Dies in Set	48
Thread Standard	Metric; SAE
Thread Pitch (mm)	0.50 ; 0.60; 0.70; 0.75; 0.80; 0.90; 1.00; 1.25; 1.50; 1.75
Tap Finish	Bright (Uncoated)
Die Material	High Speed Steel
Die Finish	Bright (Uncoated)
Die Shape	Hex
Die Type	5/8inch and 1inch Hex
Case Type	Plastic
Features	Auto-Locking; Eliminate Hand-Over-Hand Turning; Spring-Loaded Cap; Twist Lock Guide System Reduces The in Walk Back in
Die Material Grade	Carbon Steel
Max. Die Thread Size	M18x2.5
Max. Tap Thread Size	M18x2.50
Measurement System	Fractional Inch; Metric
Min. Bore Dia. (mm)	3 x 0.50 NC
Min. Tap Thread Size	M3x0.5
Standards	ASME/ANSI B94.9-1999
Tap Chamfer	Plug; Taper
Tap Material	High Speed Steel
Thread Direction	Right Hand
Thread Type	Metric; NPT
Thread per Inch	13; 14; 16; 18; 19; 20; 24; 27; 28; 32; 40
Berat (Kg)	9.1
Tanggal Produk Terdaftar	28 March 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The taps and dies in these sets are made from carbon steel. They are an economical choice for internal- and external-threading applications in maintenance operations.

Peringatan

Catatan Penting: Tanpa Garansi
Produk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.

Feature

Thread Sizes Included :
1/2-13; 1/2-20; 1/4-18NPT; 1/4-19BSP; 1/4-20; 1/4-28; 1/8-27NPT; 1/8-28 BSP; 10-24; 10-32; 12-24; 3/4-10; 3/4-16; 3/8-16; 3/8-24; 4-40; 5/16-18; 5/16-24; 5/8-11; 5/8-18; 6-32; 7/16-14; 7/16-20; 8-32; 9/16-12; 9/16-18; M14 x 1.25; M3 x 0.60; M4 x 0.75; M5 x 0.90; M9 x 1.00; M3 x 0.50; M4 x 0.70; M5 x 0.80; M6 x 1.00; M7 x 1.00; M8 x 1.25; M9 x 1.25; M10 x 1.25; M10 x 1.50; M11 x 1.50; M12 x 1.50; M12 x 1.75; M14 x 2.00; M16 x 1.50; M16 x 2.00; M18 x 1.50; M18 x 2.50
Drill Bit Size :
#16; #21; #26; #29; #3; #36; #43; #7; 10.20mm; 11/16in; 12.00mm; 14.00mm; 14.50mm; 15.50mm; 16.50mm; 17/32in; 2.50mm; 2.90mm; 21/32in; 25/64in; 27/64in; 29/64in; 3.30mm; 3.70mm; 31/64in; 33/64in; 37/64in; 4.20mm; 5.00mm; 5/16in; 6.00mm; 6.70mm; 8.50mm; 8.70mm; F; I; Q; U
55% Thread Drill Size :
#13; #21; #3; #31; #32; #37; 1/2inch; 10.20mm; 10.90mm; 11.30mm; 11.80mm; 11/32inch; 12.50mm; 12.90mm; 13.25mm; 14.20mm; 14.50mm; 14.80mm; 14.90mm; 16.20mm; 16.90mm; 17.20mm; 17.90mm; 27/64inch; 3.50mm; 3.60mm; 3/32inch; 4.25mm; 4.40mm; 5.25mm; 5.70mm; 7.10mm; 8.40mm; 8.90mm; 9.10mm; 9/32inch; D; I; W
65% Thread Drill Size :
#23; #34; #38; #5; 1/2inch; 10.00mm; 10.50mm; 11.00mm; 11.60mm; 11/32inch; 12.50mm; 13.90mm; 13/64inch; 14.70mm; 16.90mm; 17.70mm; 17/64inch; 2.30mm; 21/32inch; 27/64inch; 3.00mm; 3.40mm; 3.50mm; 31/64inch; 33/64inch; 37/64inch; 4.15mm; 4.30mm; 4.60mm; 5/8inch; 7/32inch; 8.90mm; 9/16inch; C; I; J; P; R; V
75% Thread Drill Size :
#21; #25; #36; #7; 10.30mm; 10.50mm; 11.40mm; 11/32inch; 12.00mm; 12.20mm; 12.50mm; 12.90mm; 13.60mm; 14.00mm; 14.50mm; 15.50mm; 16.50mm; 17.50mm; 2.20mm; 2.50mm; 2.90mm; 27/64inch; 3.30mm; 3.40mm; 4.20mm; 4.45mm; 5.00mm; 5.45mm; 5/16inch; 6.00mm; 8.50mm; 9.95mm; F; H; I; U
