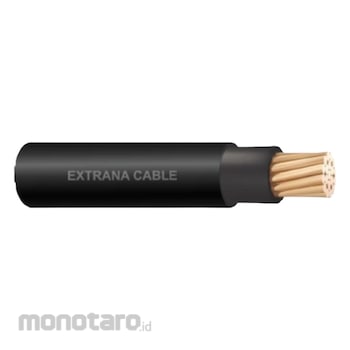

EXTRANA Power Cable NYY Series (Per Meter Continuous) For Building (Kabel Listrik) 1x25mm² 1m
Rp74.900
Persediaan
Spesifikasi Produk
| Unit | 1m |
|---|---|
| Core x Size (mm²) | 1x25 |
| Nominal Thickness Insulation (mm) | 1.2 |
| Nominal Thickness Sheath (mm) | 1.4 |
| Overall Diameter (mm) | 11.6 |
| Bending Radius (mm) | 93 |
| Maximum DC Conductor Resistance at 20°C (ohm/km) | 0.727 |
| Maximum AC Conductor Resistance at 70°C (ohm/km) | 0.87 |
| Maximum Current Carrying Capacity in Air (A) | 'Circular : 140; Flat : 137 at 30°C |
| Inductance (mH/km) | 0.358 |
| Max. Short Circuit Current at 1sec (kA) | 2.88 |
| Maximum Current Carrying Capacity in Ground (A) | 'Circular : 206; Flat : 153 at 30°C |
| Nominal Cross Section Area (mm²) | 25 |
| Number of Cores | 1 |
| Length (m) | 1 |
| Berat (Kg) | 22.0 |
| Tanggal Produk Terdaftar | 26 January 2024 |
| Terakhir Diperbaharui | 01 September 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Copper Conductor, PVC Insulated, PVC Sheated
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Use
Used as power cable for indoors, outdoors, cable trunking, and burried in the ground. Also used for power stations, industries and switchgear as well as for urban supply networks, where there is low exposure to mechanical damage.Ketentuan dan Kondisi Barang
