[RS-232] 1ch, transmission speed: 115200/57600/38400/19200/9600/4800bps, connector shape: D-sub 9 pin (male)
[RS-422/485] 1ch, transmission speed: 115200/57600/38400/ 19200/9600/4800bps, Connector shape: D-sub 9 pin (female)
[Ethernet] 1ch, Data transfer method: 100BASE-TX/10BASE-T, Connector shape: RJ-45 (modular jack)
[USB (host)] 2ch (front/back), USB standard: USB

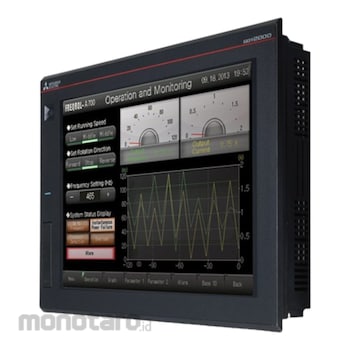

Mitsubishi Electric Touch Panel HMI GOT2000 Series GT2508-VTBD 1unit
Rp33.999.900
Persediaan
Spesifikasi Produk
| Model Number | GT2508-VTBD |
|---|---|
| Unit | 1unit |
| Internal capacity | 1 |
| Pollution Degree (Usage Environment) | 2 or Less |
| Screen Size | 8.4 Type |
| Power Consumption (W) | (At Maximum Load) 31 Or Less, (Main Unit Only) 8, (Main Unit Only When Backlight Is Off) 6 |
| Withstand Voltage | Between All Power Terminals And Ground: Ac350V For 1 Minute |
| Inrush Current (A) | 5 Or Less (20Ms, Ambient Operating Temperature 25℃, Maximum Load) |
| Number Of Characters Displayed | 16-Dot Standard Font: 40 Characters X 30 Lines (Full-Width), 12-Dot Standard Font: 53 Characters X 40 Lines (Full-Width) |
| Brightness adjustment | 32 Steps Adjustment |
| Color | (Backlight) White |
| Power Supply Voltage (V) | DC24 (+25%, -20%) |
| External dimensions (width W x height H x depth D) (mm) | 241×194×52 |
| LED Color | 2 Colors (Blue, Orange) |
| Resolution | VGA: 640×480 [dots] |
| Operating Ambient Temperature (°C) | 0-55 |
| Ambient Humidity (%RH) | (Use/Storage) 10 to 90, non-condensing |
| Surrounding altitude (m) | 2000 or Less |
| Color (Panel) | Black |
| Applicable crimp terminal | Crimp Terminal For M3 Screws Rav1.25-3, V2-S3.3, V2-N3A, Fv2-N3A |
| LED Lifespan (hour) | Approximately 60,000 (Time For Display Brightness To Be 50% At Ambient Temperature Of 25°C) |
| M Code | 11661003 |
| Berat (Kg) | 1.5 |
| Tanggal Produk Terdaftar | 18 January 2024 |
| Terakhir Diperbaharui | 21 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Expansion interface connector and expansion auxiliary interface connector are not installed.
