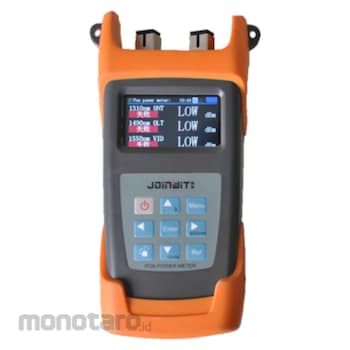

Joinwit Optical Power Meter JW3213N PON 23.5x16x8cm 1unit

Name: Joinwit Optical Power Meter JW3213N PON 23.5x16x8cm 1unit
Brand: Joinwit
SKU: S039441942
Price: 2399900 IDR
Availability: InStock

#Nomor SKU S039441942

Joinwit

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	JW3213N
Unit	1unit
Size (cm)	23.5x16x8
Measurement Range 1310 Upstream (dBm)	+10 to -35
Measurement Range 1490 Downstream (dBm)	+12 to -40
Measurement Range 1550 Downstream (dBm)	+25 to -40
Pass Zone 1310 Upstream (nm)	1310±50
Pass Zone 1490 Downstream (nm)	1490±15
Pass Zone 1550 Downstream (nm)	1550±10
Isolation 1310nm 1310 Upstream (dB)	/
Isolation 1310nm 1490 Downstream (dB)	>40
Isolation 1310nm 1550 Downstream (dB)	>40
Isolation 1490nm 1310 Upstream (dB)	>40
Isolation 1490nm 1490 Downstream (dB)	/
Isolation 1490nm 1550 Downstream (dB)	>40
Isolation 1550nm 1310 Upstream (dB)	>40
Isolation 1550nm 1490 Downstream (dB)	>40
Isolation 1550nm 1550 Downstream (dB)	/
Connatural Uncertainty 1310 Upstream (dB)	≤0.5
Wavelength Calibration (nm)	1310/1490/1550/1625
Linearity (dB)	0.01
Berat (Kg)	0.6
Tanggal Produk Terdaftar	04 December 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

- TFT color screen
- 10 minutes Auto-off function can be activated or deactivated, date and time setting.
- Optional Chinese/English display.
- Can test the three wavelengths of 1310, 1490 and 1550nm in PON system simultaneously
- Used in Burst mode measurement of 1310nm upstream.
- The instrument can set the measuring threshold and calibration wavelength
- Support VFL function
- Support Optical Power Meter test mode
- Support for simultaneous measurement and display of experimental voice, data and video signals on the BPON/EPON/GPON architecture.
