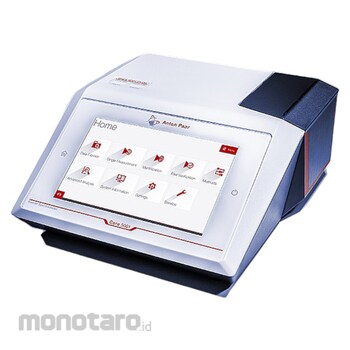

Anton Paar Compact Raman Spectrometer Cora 5001 Dual 532Nm and 785Nm Optical Fiber 384x355x168mm 1unit

Name: Anton Paar Compact Raman Spectrometer Cora 5001 Dual 532Nm and 785Nm Optical Fiber 384x355x168mm 1unit
Brand: Anton Paar
SKU: S039291424
Price: 2699999900 IDR
Availability: InStock

#Nomor SKU S039291424

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	Cora 5001
Unit	1unit
Dimensions (mm)	384x355x168
Environmental Operating Conditions (°C)	10 to 35, Non-condensing
Environmental Storage Conditions (°C)	-10 to 50, Non-condensing
Power Supply Line Power Supply Input (V)	115/230 AC (50/60Hz)
Power Supply Car Adapter Input (V)	9 to 34 DC
Power Consumption Line Power Input (VA)	Max. 100
Power Consumption DC Input (VA)	Typical 30 (60 When Optional Battery Is Charged)
Battery (Optional)	Lithium-ion, Run Time 1.5 Hours (Typical 3 Hours), Recharge 8 Hours
Antarmuka	4x USB (2.0), 1x Ethernet (Reserved: 1x CAN Out, 1x USB to PC)
Wireless Connectivity	WiFi Adapter (Optional)
Spectral Libraries	Factory Library, User-built, 3rd Party Options
Security	User Roles With Customizable Permissions, User Password Logins
Excitation Wavelength (nm)	532, 785
Spectral Range 533nm (cm-¹)	200 to 3500
Spectral Range 785nm (cm-¹)	100 to 2300
Resolution FWHM 532nm (cm-¹)	9 to 12
Resolution FWHM 785nm (cm-¹)	6 to 9
Laser Power 532nm (mW)	50
Laser Power 785nm (mW)	0 to 450
Spectograph	f/2, Transmission Volume Phase Grating (VPG)
Berat (Kg)	9.8
Tanggal Produk Terdaftar	03 November 2023
Terakhir Diperbaharui	27 May 2025
