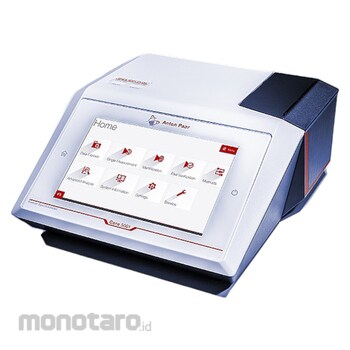

Anton Paar Compact Raman Spectrometer
#Grup produk P109063382
Spesifikasi
| Dimensions (mm) | 384x355x168 |
|---|---|
| Environmental Operating Conditions (°C) | 10 to 35, Non-condensing |
| Environmental Storage Conditions (°C) | -10 to 50, Non-condensing |
| Power Supply Line Power Supply Input (V) | 115/230 AC (50/60Hz) |
| Power Supply Car Adapter Input (V) | 9 to 34 DC |
| Power Consumption Line Power Input (VA) | Max. 100 |
| Battery (Optional) | Lithium-ion, Run Time 1.5 Hours (Typical 3 Hours), Recharge 8 Hours |
| Excitation Wavelength (nm) | 532, 785 |
| Interfaces | 4x USB (2.0), 1x Ethernet (Reserved: 1x CAN Out, 1x USB to PC) |
| Laser Power 532nm (mW) | 50 |
| Laser Power 785nm (mW) | 0 to 450 |
| Power Consumption DC Input (VA) | Typical 30 (60 When Optional Battery Is Charged) |
| Resolution FWHM 532nm (cm-¹) | 9 to 12 |
| Resolution FWHM 785nm (cm-¹) | 6 to 9 |
| Security | User Roles With Customizable Permissions, User Password Logins |
| Spectograph | f/2, Transmission Volume Phase Grating (VPG) |
| Spectral Libraries | Factory Library, User-built, 3rd Party Options |
| Spectral Range 533nm (cm-¹) | 200 to 3500 |
| Spectral Range 785nm (cm-¹) | 100 to 2300 |
| Wireless Connectivity | WiFi Adapter (Optional) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
Harga Sudah Termasuk Training dan Installasi seluruh pulau Jawa
