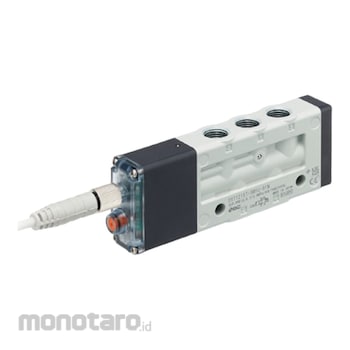

SMC High-Speed Response Pilot Operated Solenoid Valve DXT1215 Series DXT1215T-5WOU-01F 1pc

Name: SMC High-Speed Response Pilot Operated Solenoid Valve DXT1215 Series DXT1215T-5WOU-01F 1pc
Brand: SMC
SKU: S038988547
Price: 1699900 IDR
Availability: InStock

#Nomor SKU S038988547

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	DXT1215T-5WOU-01F
Unit	1pc
Ambient and Flowing Fluid Temperature (°C)	-10 to 60 (but without freezing)
Allowable Voltage fluctuation	-5% to +10% of rated voltage
Coil Rated Voltage (V)	DC24
Internal Pilot Valve Operating Pressure Range (MPa)	0.3 - 0.6
Lamp/Surge Voltage Protection Circuit	diode
Lubrication	Unnecessary
Maximum Operating Frequency (Hz)	200
Mounting Direction	Freedom
Number of Ports	5
Pilot Valve Exhaust	(Internal pilot) Collective exhaust type
Pipe Connection Diameter	1/8
Protection Class	IP67
Shock Resistance (m/s²)	150
Suitable fluid	Air
Type of Lead Wire Extraction	M8 connector (without connector cable)
Type of Switching	2 position single
Type Of Thread	G
Valve Structure	Elastic body seal
Vibration Resistance (m/s²)	30
M Code	82795783
Berat (Kg)	0.8
Tanggal Produk Terdaftar	27 October 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details

Feature

High -speed response
compact
Large flow
Protective structure
Power saving
3.5 ports can be selected

Use

It can be used for high -speed driving of air blow actuator!
High -speed/liquid application process, fleeing selection process, high -speed/emission process
