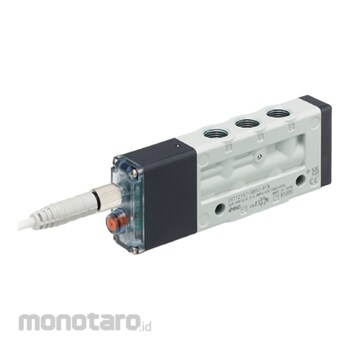

SMC High-Speed Response Pilot Operated Solenoid Valve DXT1215 Series
#Grup produk P108949614
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp1.699.900 - Rp1.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient and Flowing Fluid Temperature (°C) | -10 to 60 (but without freezing) |
|---|---|
| Allowable Voltage fluctuation | -5% to +10% of rated voltage |
| Coil Rated Voltage (V) | DC24 |
| Internal Pilot Valve Operating Pressure Range (MPa) | 0.3 - 0.6 |
| Lamp/Surge Voltage Protection Circuit | diode |
| Lubrication | Unnecessary |
| Maximum Operating Frequency (Hz) | 200 |
| Mounting Direction | Freedom |
| Pilot Valve Exhaust | (Internal pilot) Collective exhaust type |
| Pipe Connection Diameter | 1/8 |
| Protection Class | IP67 |
| Shock Resistance (m/s²) | 150 |
| Suitable fluid | Air |
| Type of Switching | 2 position single |
| Valve Structure | Elastic body seal |
| Vibration Resistance (m/s²) | 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
High -speed responsecompact
Large flow
Protective structure
Power saving
3.5 ports can be selected
Use
It can be used for high -speed driving of air blow actuator!High -speed/liquid application process, fleeing selection process, high -speed/emission process
Dokumentasi Produk
