SMC Hex Socket Half Union KQ2S06-02S 1pc
Rp50.000
Persediaan
Spesifikasi Produk
| Model Number | KQ2S06-02S |
|---|---|
| Unit | 1pc |
| Color | Body: White release bush: Light gray |
| Material | Body: C3604BD, PBT, PP, Driving half: C3604BD (screw part), Chuck: SUS304, Guide: SUS304, C3604BD, POM, Collet, Release Bush: POM, Packing, O-ring: NBR, Gasket: SUS304, NBR |
| Operating Vacuum Pressure (kPa) | -100 |
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Assured Pressure Resistance (MPa) | 3 |
| Connector Thread | R1/4 |
| Dimension A (mm) | 18 |
| Dimension d1 (Φmm) | 13.8 (maximum diameter) |
| Dimension H (mm) | 4 (opposite the hexagon) |
| Dimension L (mm) | 24 |
| Dimensions m (mm) | 17 |
| Effective Section Area (mm²) | Nylon: 10.7, Urethane: 10.0 |
| Maximum Operating Pressure (MPa) | 1 |
| Screws | JIS B0203 |
| Shape | Half-union with hexagon socket |
| Suitable fluid | Air, general industrial water |
| Suitable Tube Material | Nylon / Polyurethane |
| Suitable Tube Outer Diameter (Φmm) | 6 |
| Type Of Thread | R |
| M Code | 06891394 |
| Berat (Kg) | 0.4 |
| Tanggal Produk Terdaftar | 27 October 2023 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning

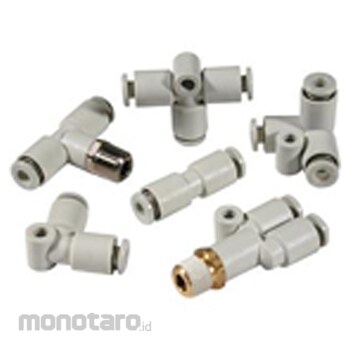

Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
It can be used for both nylon, soft nylon, and polyurethane. The piping man -hours are greatly reduced and the space is saved.Ketentuan dan Kondisi Barang
