GAE EMG 10 Digital Power Meter is an economic solution to measure basic parameter from main electrical like current, voltage, and power.
APPLICATIONS
Instantaneous Measurement : main consumers can be identified by measuring the energy consumption of the various sub-assemblies in your buildings.
Remote Monitoring : all measured parameters are transmitted to a PC through RS485 so that keep customers be informed of system performance for 24 hours per day.
Equipment Maintenance : monitoring elapsed hours for equipment, recording actual running hours, tracking running time for equipment service with Run hour, On hour and Power interruption counter features.

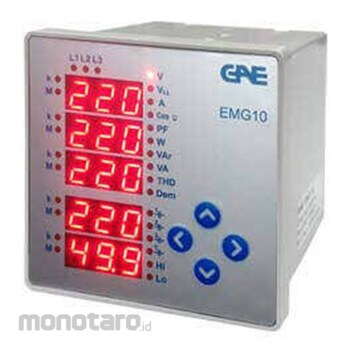

GAE Digital Power Meter EMG 10 LED 7 Segment Tanpa RS485 1pc
Rp2.699.900
Persediaan
Spesifikasi Produk
| Model Number | EMG 10 |
|---|---|
| Unit | 1pc |
| Seven Segment Display | Available |
| Password Protection | Available |
| Current Transformer Ratio | 1-5000 |
| Voltage Transformer Ratio | 1-5000 |
| Demand Period (minute) | 1-60 (Adjust) |
| Connection Type | 3P4W, 3P3W |
| Measurement in Quadrants | 4 |
| Number of Measurement in a Period | 256 |
| LCD/Display Refresh Period (s) | 1 |
| Networks | TT, TN, IT |
| Min/Max/Demand Values | Available |
| Number of Tariffs | 1 |
| Input Measurement Range | 10mA-6A AC |
| Input Overvoltage Category (V) | 300 Cat II |
| Measurement Surge Voltage (kV) | 2 |
| Power Consumption (V/A) | < 0.2 |
| Intermittent Overload for 1sec (A) | 100 |
| Sampling Frequency Between 45-65 Hz (kHz) | 12.8 |
| Measured Range L-N (Vrms) | 1-300 |
| Measured Range L-L (Vrms) | 2-500 |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 10 October 2023 |
| Terakhir Diperbaharui | 20 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Bright Seven Segment Display- Adjustable CT and PT
- 4 digit password entry
- Absence of Voltage and Current can be detected and indicates each alarm by blinking LED's on its front panel.
- Total Harmonic Distortion (%) measurement
- RS485 Communication
