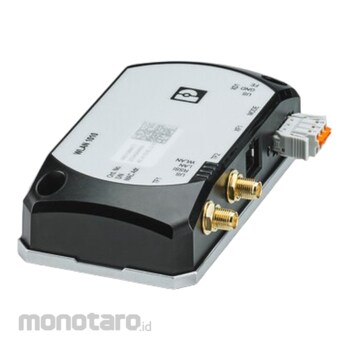

Phoenix Contact Wireless Module 2702899 FL WLAN 1010 1pc

Name: Phoenix Contact Wireless Module 2702899 FL WLAN 1010 1pc
Brand: Phoenix Contact
SKU: S038583483
Price: 10999900 IDR
Availability: OutOfStock

#Nomor SKU S038583483

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	2702899
Unit	1pc
Product Type	Wireless module
Operating Ambient Temperature (°C)	0 to 60
Width (mm)	63
Mounting Type	Wall mounting, optional DIN rail adapter
Height (mm)	26
Storage/Transport Ambient Temperature (°C)	-40 to 85
Housing Material	Polycarbonate, PC
Depth (mm)	113
Application	Ethernet
Number of Positions	3
Degree of Protection	IP20
Conductor Cross Section Flexible (mm²)	0.2 to 1.5
Permissible Humidity (Storage/Transport) (%)	5 to 95 (non-condensing)
Stripping Length (mm)	10
Conductor Cross Section Rigid (mm²)	0.2 to 1.5
Maximum Power Dissipation for Nominal Condition (W)	3.6
Permissible Humidity (Operation) (%)	5 to 95 (non-condensing)
Pollution Degree	2
Conductor Cross Section Awg	24 to 16
Supply Voltage Range (V)	9 DC to 32 DC (PELV/SELV)
Berat (Kg)	0.2
Tanggal Produk Terdaftar	28 September 2023
Terakhir Diperbaharui	27 June 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

WLAN access point, client with 2 external antenna connections (RSMA-F), IP20, temperature range :0 °C … +60 °C, WLAN 802.11 a, b, g, n, frequency: 2.4 GHz, 5 GHz, connections: COMBICON 9 V DC ... 32 V DC, RJ45: for LAN, web, http/https, CLI, REST API

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details
