You can weld with Cellulose-coated electrode at any positions
1. Superior Arc Stability
2. User Friendly Operation
3. Arc Drive Control
4. High Efficiency
Include Accessories
- UGS D70 Cable (Original)
- UGS Stang Masa
- UGS stang Las 800A
- CPU Isolasi nitto (hitam)
- CPU D95-12 Scund Cable

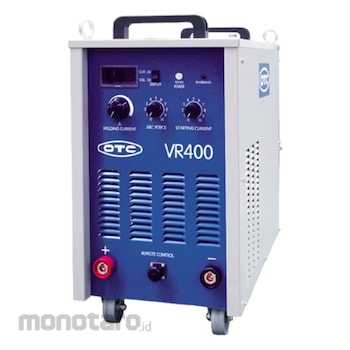

OTC DAIHEN Welding Power Supply VR-400 329x608x598mm 1set
Rp59.999.900
Persediaan
Spesifikasi Produk
| Model Number | VR-400 |
|---|---|
| Unit | 1set |
| Dimensions (mm) | 329 x 608 x 598 |
| Fuse / Breaker Capacity (A) | 40 |
| Input Cable and Grounding Cable (mm²) | 8 or more |
| Protection Rating | IP21S |
| Usable Temperature Range (°C) | -10 ~ +40 |
| Class of Insulation | Main transfer Class C; DC reactor Class 200°C |
| Rated Usage Rate (%) | 60 |
| Rated No-Load Voltage (V) | 66.9 ~ 73 |
| Rated Output (A/V) | 400/36 |
| Rated Output Current Range (A) | 10 ~ 400 |
| Rated Frequency (Hz) | 50/60 |
| Number of Phase | 3 |
| Rated Input (V) | 380/400 |
| Power Source Voltage | 380 V ±10% , 415 V ±10% |
| Berat (Kg) | 56.2 |
| Tanggal Produk Terdaftar | 02 August 2023 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- IGBT inverter control, Easy Arc StrikeEquipped with advanced IGBT control module and circuit design, offers stable and easy arc strike
- Perfect constant current characteristics, welding very stable
Due to perfect constant no matter conditions such as hand position change, input voltage change, surrounding temperature change, or cable length change
- Wide range of applications
Suitable for wide application such as oil gas, pressure tank, construction, various factory works and repair work.
- Automatic remote control box recognition. Plug in to use remote control box
Remote control box (Optional Accessory) for easy setting of welding conditions.
- Stackable two machines, by place the upper machine's legs fitting to the lower machine's handle
- Feature input over-voltage protection circuit, input low-voltage protection circuit and input lack-phase protection circuit
- Dust-proof structure enables using under harsh environment
- Electric shock preventing device (standard device)
Protec operator from electric shock
