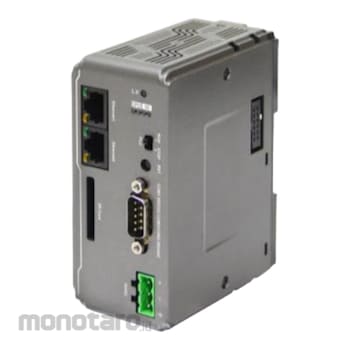

Weintek cMT Series cMT-CTRL01 CODESYS PLC with IIoT Gateway 1pc

Name: Weintek cMT Series cMT-CTRL01 CODESYS PLC with IIoT Gateway 1pc
Brand: Weintek
SKU: S037479855
Price: 11999900 IDR
Availability: InStock

#Nomor SKU S037479855

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	cMT-CTRL01
Unit	1pc
Protocol	Modbus TCP/IP Master, EtherCAT Master
RAM Size (MB)	512
Enclosure	Plastic
Dimensions (mm)	50x109x81
Processor	Dual-Core 32-bit RISC 1GHz
Ethernet	Ethernet 1: 10/100/1000 Base-T x1; Ethernet 2: 10/100 Base-T x1
COM Port	COM1 RS-232 2W, COM2 RS-485 2W/4W, COM3 RS-485 2W
Input Power (VDC)	24 ±20%
Power Consumption (mA)	550 @5VDC
Protection Structure	IP20
Operating Temperature (°C)	-10 to 50
Software	EasyBuilder Pro v6.03.02 or later, Weincloud EasyAccess 2.0, CODESYS V3.5 SP10 Patch 3 or later
SD Card Slot	SD/SDHC
Power Dissipation (mA)	310 @24VDC
PCB Coating	Yes
Power Isolation	Built In
Voltage Resistance (VAC)	500 (1 min)
Isolation Resistance (MΩ)	Exceed 50 at 500VDC
Vibration Endurance Frequency (Hz)	10 to 25 (X, Y, Z direction 2G 30-min.)
Mount	35 mm DIN rail mounting
Berat (Kg)	0.2
Tanggal Produk Terdaftar	28 July 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

- CODESYS PLC compliant with IEC61131-3
- Fan-less Cooling System
- Built- in 4GB Flash Memory and RTC
- SD Card Slot Supports SD/SDHC Cards
- Rich combination of iR Series Modules

Gateway
- COM2 / COM3 RS-485 2W Supports MPI 187.5K
- Supports OPC UA Server/Client and MQTT
- Modbus TCP/IP Gateway
