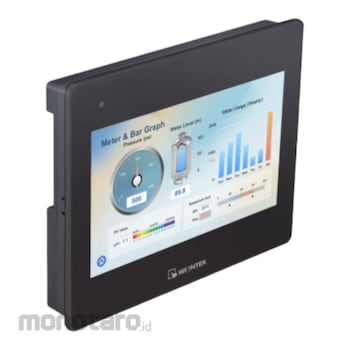

Weintek cMT Series cMT1106X HMI with 10.1inch TFT Display 1pc

Name: Weintek cMT Series cMT1106X HMI with 10.1inch TFT Display 1pc
Brand: Weintek
SKU: S037479732
Price: 9799900 IDR
Availability: InStock

#Nomor SKU S037479732

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	cMT1106X
Unit	1pc
Display TFT (inch)	10.1
RAM Size (MB)	1000
Enclosure	Plastic
Dimensions (mm)	271x213x38
Processor	Quad-core RISC
Ethernet	10/100 Base-T x1
COM Port	Con.A:COM2 RS-485 2W/4W,COM3 RS-485 2W; Con.B: COM1 RS-232 4W, COM3 RS-232 2W
Input Power (VDC)	24 ±20%
Power Consumption (mA)	720 @24VDC
Protection Structure	NEMA4 / IP66 Compliant Front Panel
Operating Temperature (°C)	0 to 55
Software	EasyBuilder Pro v6.06.01 or later, Weincloud Dashboard or EasyAccess 2.0
USB Host	USB 2.0 x1
Resolution	1024x600
PCB Coating	Yes
Power Isolation	Built In
Voltage Resistance (VAC)	500 (1 min)
Isolation Resistance (MΩ)	Exceed 50 at 500VDC
Vibration Endurance Frequency (Hz)	10 to 25 (X, Y, Z direction 2G 30-min.)
Mount	Panel mount, VESA mount 75x75mm
Berat (Kg)	1.2
Tanggal Produk Terdaftar	28 July 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

- 10.1inch 1024 x 600 TFT LCD, LED Backlight
- Built- in 4GB Flash Memory and RTC
- Fan-less Cooling System
- PCB coating process ensures high reliability to resist from corrosion in harsh environment.
- Built-in Power Isolation
- NEMA4 / IP66 Compliant Front Panel
- Compatible with M02 WiFi Expansion Module that supports wireless communication.
