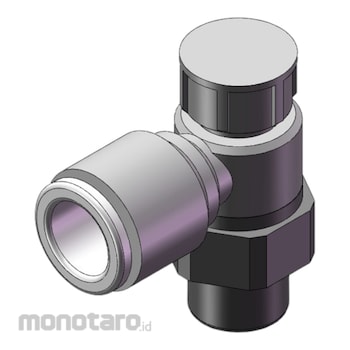

SMC Speed Controller AS2201F-01-08A General Purpose, One-touch Fitting, With Push-lock, Elbow 1/8inch 1pc

Name: SMC Speed Controller AS2201F-01-08A General Purpose, One-touch Fitting, With Push-lock, Elbow 1/8inch 1pc
Brand: SMC
SKU: S037466428
Price: 269900 IDR
Availability: OutOfStock

#Nomor SKU S037466428

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	AS2201F-01-08A
Unit	1pc
Maximum Operating Pressure (MPa)	1
Type	Elbow type
Suitable Tube Outer Diameter (Φmm)	8
Body Size	1/8 , 1/4
Operating Temperature Range (°C)	-5 to 60 (no freezing)
Assured Pressure Resistance (MPa)	1.5
Minimum Working Pressure (MPa)	0.1
Type Of Thread	R
Suitable Tube Material	Nylon, soft nylon, polyurethane
Suitable fluid	Air
Type of control	Meter out
Connector Diameter	R1/8
Hex Width Across (mm)	9
Sealing Type	Sealant
TRUSCO Number	453-9800
M Code	45367691
Berat (Kg)	0.1
Tanggal Produk Terdaftar	27 July 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Using SMC speed controls with built in one-touch fittings minimizes installation time, reduces mounting height and enables a more compact machine design. These speed controls allow the body to be rotated to facilitate simple installation. Available in thread sizes from M3 to 1/2 in both inch (NPT) and metric R(PT) and with tube sizes from 3.2mm to 12mm OD (metric) and 1/8 to 1/2 OD (inch) and with optional elbow and universal style (increased flexibility) and meter-in and meter-out, these speed controls are designed to meet most applications.
