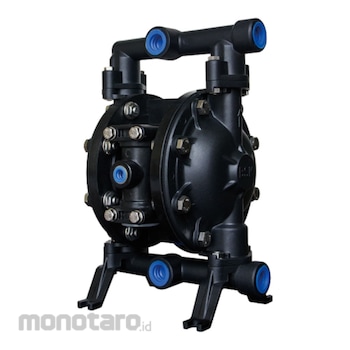

BSK Pneumatic Diaphragm Pump BP15AL-PTT3-A 1pc
Rp7.299.900
Persediaan
Spesifikasi Produk
| Model Number | BP15AL-PTT3-A |
|---|---|
| Unit | 1pc |
| Pipe Size (inch) | 1/2 |
| Max. Air Pressure (Psi/Bar) | 100/6.9 |
| Maximum Flow Rate (L/minute) | 45.3 |
| Wetted Material | Aluminium Alloy (AL) |
| Seat Material | UPE |
| Diaphragm/Ball Material | PTFE-Santoprene/PTFE (Full) |
| O-Ring Materials | PTFE (Full) |
| Material Inlet/Outlet | BSP |
| Maximum Suction Lift Dry (ft/m) | 11/3.4 |
| Displacement/Cycle (L) | 0.14 |
| Max. Particle Size (inch) | 3/32 |
| Maximum Particle Size (mm) | 2.5 |
| Noise Level (dB) | 75 @70PSi |
| Berat (Kg) | 3.1 |
| Tanggal Produk Terdaftar | 20 July 2023 |
| Terakhir Diperbaharui | 07 August 2025 |
Informasi Produk
Description
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile,rubber,neoprene , Viton , Teflon , depending on the liquid medium , poly ethylene forty-six . To meet the needs of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website.
