Compact and cost effective for general fluid transfer applications.
Flow rate 0.42 to 2900 ml/min with L/S tubing-flow rate depends on drive rpm, pump head, and tubing size
Simple operation with single-turn speed control
Separate power switch enables you to maintain speed setting when turning drive on/off; front-panel LED indicates power on
Reversible motor lets you easily prime/purge tubing and pump in either direction
Remote control of start/stop via DB9 connector on back of drive
Drives accept nine different pump head types: Standard, Easy-Load, Easy-Load II, Easy-Load 3, Multichannel, High-Performance, Cartridge, PTFE tubing, and PTFE-diaphragm. Drives 07555-00 and -05 are not recommended for use with the PTFE-tubing and PTFE-diaphragm pump heads.
Delivery information: Includes 6-ft (1.8 m) line cord with IEC 320/CEE22 socket. Shipped with country-specific cord/plug set; please specify ultimate destination when ordering.

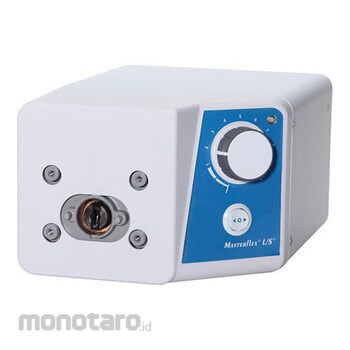

Master Flex Peristaltic Pump Drives 07555-05 Analog Variable-Speed Console Drive; 230VAC 20 to 600rpm 1unit
Rp99.999.900
Persediaan
Spesifikasi Produk
| Model Number | 07555-05 |
|---|---|
| Unit | 1unit |
| Maximum Flow Rate (ml/minute) | 2900 |
| Motor Power (W) | 37 |
| Speed | Variable |
| Speed Control (%) | ±5 |
| Type of Pump Heads Accepted | Standard, Easy-Load, Easy-Load II, Easy-Load 3, Multichannel, High-Performance, Cartridge |
| Voltage (V) | 180-260 AC |
| Frequency (Hz) | 50/60 |
| Current (A) | 0.8 |
| Drive Dimensions (LxWxH) (mm) | 230x183x134 |
| Housing Material | Painted steel and ABS plastic |
| Maximum Speed (rpm) | 600 |
| Control Type | Analog Variable Speed |
| Plug Type | US |
| Minimum Speed (rpm) | 20 |
| Remote I/O | Start/Stop |
| Power (V/Hz/A) | 180-260 AC; 50/60; 0.8 |
| Pump Series | L/S |
| Motor (HP) | 1/20 |
| No. of Pump Heads Accepted | 1 |
| Berat (Kg) | 20.0 |
| Tanggal Produk Terdaftar | 27 June 2023 |
| Terakhir Diperbaharui | 22 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Flow rate 0.42 to 2900 ml/min with L/S tubing-flow rate depends on drive rpm, pump head, and tubing sizeSimple operation with single-turn speed control
Separate power switch enables you to maintain speed setting when turning drive on/off; front-panel LED indicates power on
Reversible motor lets you easily prime/purge tubing and pump in either direction
Remote control of start/stop via DB9 connector on back of drive
