Don't lose control of your metering applications-digital display gives you precise control.
Accurate and repeatable settings with 3-digit LED display of rpm
Pump fluid in either direction with reversible motor-perfect for purging tubing
Choose multichannel systems for synchronous flow from all channels
Maximize processes in a minimal footprint by stacking splash-resistant, IP33-rated drives
Two ways to control speed, direction, and start/stop-use either the membrane keypad or remote-control capabilities
Flow range 0.47 to 47 mL/min with included L/S tubing-flow rate depends on drive rpm and tubing size
These L/S precision variable-speed console drives offer precise ±0.25% speed control for accurate flow regulation. The large LED display and LED indicators confirm motor rpm and motor direction at a glance. The complete pump systems include all you need to start pumping.
Delivery information: Includes L/S drive 07528-30, multichannel pump head 07535-04, and 3.1 mm ID L/S 16 Tygon 2-stop tubing 06447-16.

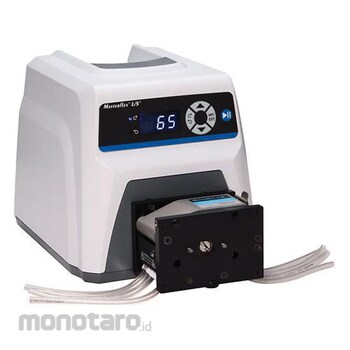

Master Flex Peristaltic Pump 77926-10 with Multichannel Pump Head for Precision Tubing, 4-Channel 90 to 260VAC 1unit
Rp259.999.900
Persediaan
Spesifikasi Produk
| Model Number | 77926-10 |
|---|---|
| Unit | 1unit |
| Maximum Flow Rate (ml/minute) | 188 |
| Accuracy (%) | ±0.25 (1 rpm at 600 and 300 rpm; 0.1 rpm at 100 rpm) |
| Housing Material | ABS plastic and aluminium |
| Tubing Sizes Accepted | L/S 13, 14, 16 |
| No. of Channels | 4 |
| Maximum Speed (rpm) | 100 |
| Control Type | Variable-Speed Digital |
| Plug Type | US |
| Minimum Speed (rpm) | 1 |
| Remote I/O | 4 to 20 mA, 0 to 10 V, start/stop and direction via contact closure |
| Minimum Flow Rate per Channel (ml/minute) | 0.47 |
| Maximum Flow Rate per Channel (ml/minute) | 47 |
| No. of Rollers | 3 |
| Drive | 07528-30 (L/S Variable-Speed Digital Drive with Remote I/O, 100 rpm) |
| Pump Head | 07535-04 (L/S 4-Channel Pump Head) |
| Power (V/Hz/A) | 90-260 AC; 50/60; 1.8 @115V; 1.2 @230V |
| Minimum Flow Rate (ml/minute) | 1.88 |
| Dimensions (LxWxH) (mm) | 349x210.8x215.9 |
| Pump Series | L/S |
| Tubing | 06447-16, 8/pk (Tygon Lab 2-Stop Tubing Set, 3.1 mm ID, L/S 16) |
| Berat (Kg) | 20.0 |
| Tanggal Produk Terdaftar | 27 June 2023 |
| Terakhir Diperbaharui | 22 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Accurate and repeatable settings with 3-digit LED display of rpmPump fluid in either direction with reversible motor-perfect for purging tubing
Choose multichannel systems for synchronous flow from all channels
Maximize processes in a minimal footprint by stacking splash-resistant, IP33-rated drives
Two ways to control speed, direction, and start/stop-use either the membrane keypad or remote-control capabilities
Flow range 0.47 to 47 mL/min with included L/S tubing-flow rate depends on drive rpm and tubing size
