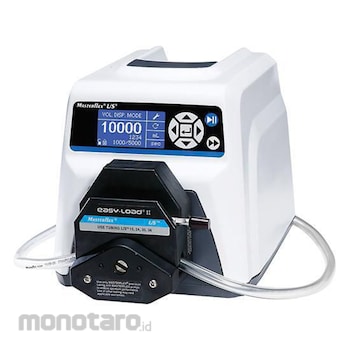

Master Flex Peristaltic Pump 77924-65 Masterflex L/S Digital Computer-Compatible Drive with Easy-Load II Pump Head 115/230VAC 1unit

Interface these digital drives to a PC or network for automated lab and process applications.









Digital interface with graphical LCD shows pump performance and operating mode- continuous run, timed dispense, copy dispense, or volume dispense
Interface with a PC via RS-232 or USB connection
Remote control available using analog communication-voltage, current and contact closure
Dispense by Volume in ml (0.001 to 9,999 mL), L, or gal; Copy-1 to 9,999 dispense cycles; or Time-time interval of on/off cycles (1 sec to 99 hr, 59 min, 59 sec per cycle)
Antidrip function ensures dispensing accuracy








Flow range 0.28 to 1700 mL/min with included L/S tubing-flow rate depends on drive rpm and tubing size





These precision drives offer digital and analog remote control (I/O) options and simple programming-ideal for automated process and network applications. Drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing. Programmed calibration ensures dispense and display accuracy-drive stores one calibration value per tubing size.

Program the drive via the simple membrane keypad or remotely; keypad lock/unlock feature protects settings. Motor is reversible so you can purge tubing before or after pumping and pump fluid in either direction.






Delivery information: Includes L/S drive 07551-20, Easy-Load II pump head 77200-62, 10-ft of C-Flex ULTRA tubing, and 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country specific plug/cord set; please specify ultimate destination when ordering.
