Easy operation and easy
on the budget.
Flow rate up to 2.2 LPM per channel-flow rate depends on drive rpm, pump head, and tubing size
Drive comes equipped with either 3 or 4 I/P Easy-Load pump heads
Purge system or pump in either direction with combination on/off/reverse switch
Constructed of painted steel/aluminum IP55-rated housing
Fixed-speed drive features 180 rpm speed
Runs on 115 VAC, 60 Hz power
These fixed-speed drives are IP55-rated for protection from dust and water. The pump systems give you the option of three or four channels controlled through a single reversible fixed-speed motor.
Delivery information: Includes drive, 4 Easy-Load pump heads, 10-ft of C-Flex ULTRA tubing, and 6-ft (1.8-m) line cord with US standard plug.

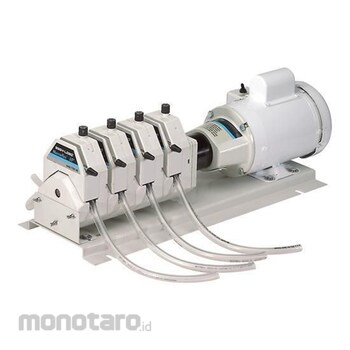

Master Flex Peristaltic Pump 07588-90 Fixed-Speed Washdown Drive System, Four-Channel Easy-Load Pump Head 180rpm; 115VAC 1unit
Rp569.999.900
Persediaan
Spesifikasi Produk
| Model Number | 07588-90 |
|---|---|
| Unit | 1unit |
| Maximum Flow Rate (ml/minute) | 9200 |
| Voltage (V) | 115 AC |
| Frequency (Hz) | 50/60 |
| Current (A) | 4.5 |
| Housing Material | Painted steel |
| Tubing Sizes Accepted | I/P 26, 73, 82 |
| No. of Channels | 4 |
| Maximum Speed (rpm) | 180 |
| Control Type | Fixed-Speed |
| Plug Type | US |
| Minimum Speed (rpm) | 180 |
| Minimum Flow Rate per Channel (ml/minute) | 2300 |
| Maximum Flow Rate per Channel (ml/minute) | 2300 |
| No. of Rollers | 3 |
| Drive | 07588-60 (I/P Fixed-Speed Wash-Down Drive, 100 rpm; 115V) |
| Pump Head | Four 77602-10 (I/P Easy-Load Head) |
| Power (V/Hz/A) | 115 AC; 50/60; 4.5 |
| Dimensions (LxWxH) (mm) | 769.1x284.7x261.1 |
| Pump Series | I/P |
| Tubing | 06434-73, 10-ft (C-FLEX Ultra, I/P 73) |
| Berat (Kg) | 20.0 |
| Tanggal Produk Terdaftar | 27 June 2023 |
| Terakhir Diperbaharui | 22 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Flow rate up to 2.2 LPM per channel-flow rate depends on drive rpm, pump head, and tubing sizeDrive comes equipped with either 3 or 4 I/P Easy-Load pump heads
Purge system or pump in either direction with combination on/off/reverse switch
Constructed of painted steel/aluminum IP55-rated housing
Fixed-speed drive features 180 rpm speed
Runs on 115 VAC, 60 Hz power
