Take it where you need it-ideal for field use.
Flow rate 6 to 2700 ml/min with L/S tubing-flow rate depends on drive rpm, pump head and tubing size
Rugged, continuous-duty motor is ideal for applications that require full-time duty cycle
Vary input voltage to change drive speed and reverse input voltage polarity to reverse direction-Control drive completely using power source
Constructed with chemical-resistant epoxy-coated steel motor housing for IP52 rating
Accepts up to 2 pump heads
These fixed-speed compact drives operate on 12 VDC input power. Wire power from your 12 or 24 VDC power source with three-wire, 16-gauge, 12-inch (30 cm) long stripped-end leads for power connection. Drives accept 8 different pump head types: Standard, Easy-Load, Easy-Load II, Easy-Load 3, High-Performance, Cartridge, PTFE Tubing, or PTFE-Diaphragm†.
†Drives that accept only one pump head cannot be used with the High-Performance or PTFE-Tubing pump heads due to insufficient torque.

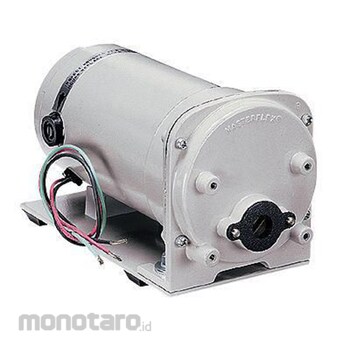

Master Flex Analog Fixed-Speed Compact Drives 07533-70 100rpm; 24VDC 1pc
Rp75.999.900
Persediaan
Spesifikasi Produk
| Model Number | 07533-70 |
|---|---|
| Unit | 1pc |
| Maximum Flow Rate (ml/minute) | 580 |
| Motor Power (W) | 37 |
| Speed | Fixed |
| Speed Control (%) | ±5 |
| Type of Pump Heads Accepted | Standard, Easy-Load, Easy-Load II, Easy-Load 3, High Performance, PTFE-Tubing, PTFE Diaphragm |
| Drive Height (mm) | 117 |
| Drive Length (mm) | 216 |
| Drive Width (mm) | 97 |
| Drive IP Rating | IP 52 |
| Housing Material | Painted steel |
| Maximum Speed (rpm) | 100 |
| Control Type | Fixed speed |
| Power Voltage (V) | 24DC; 1.5 A |
| Open-Head Sensor | No |
| Pump Series | L/S |
| Motor (HP) | 1/20 |
| No. of Pump Heads Accepted | 2 |
| Berat (Kg) | 20.0 |
| Tanggal Produk Terdaftar | 27 June 2023 |
| Terakhir Diperbaharui | 22 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Flow rate 6 to 2700 ml/min with L/S tubing-flow rate depends on drive rpm, pump head and tubing sizeRugged, continuous-duty motor is ideal for applications that require full-time duty cycle
Vary input voltage to change drive speed and reverse input voltage polarity to reverse direction-Control drive completely using power source
Constructed with chemical-resistant epoxy-coated steel motor housing for IP52 rating
Accepts up to 2 pump heads
