Take it where you need it-ideal for field use.
Flow rate 6 to 2700 ml/min with L/S tubing-flow rate depends on drive rpm, pump head and tubing size
Rugged, continuous-duty motor is ideal for applications that require full-time duty cycle
Vary input voltage to change drive speed and reverse input voltage polarity to reverse direction-Control drive completely using power source
Constructed with chemical-resistant epoxy-coated steel motor housing for IP52 rating
Accepts up to 2 pump heads
These fixed-speed compact drives operate on 12 VDC input power. Wire power from your 12 or 24 VDC power source with three-wire, 16-gauge, 12-inch (30 cm) long stripped-end leads for power connection. Drives accept 8 different pump head types: Standard, Easy-Load, Easy-Load II, Easy-Load 3, High-Performance, Cartridge, PTFE Tubing, or PTFE-Diaphragm†.
†Drives that accept only one pump head cannot be used with the High-Performance or PTFE-Tubing pump heads due to insufficient torque.

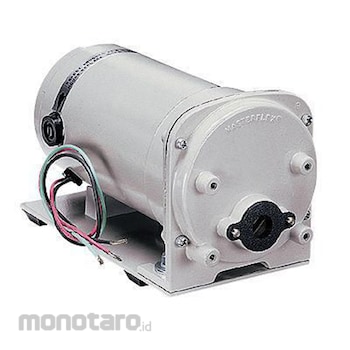

Master Flex Analog Fixed-Speed Compact Drives
#Grup produk P108379082
Sebelum PPN:
Rp70.999.900 - Rp75.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Speed | Fixed |
|---|---|
| Speed Control (%) | ±5 |
| Drive Height (mm) | 117 |
| Control Type | Fixed speed |
| Drive IP Rating | IP 52 |
| Drive Length (mm) | 216 |
| Drive Width (mm) | 97 |
| Housing Material | Painted steel |
| Motor (HP) | 1/20 |
| Motor Power (W) | 37 |
| Open-Head Sensor | No |
| Pump Series | L/S |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Flow rate 6 to 2700 ml/min with L/S tubing-flow rate depends on drive rpm, pump head and tubing sizeRugged, continuous-duty motor is ideal for applications that require full-time duty cycle
Vary input voltage to change drive speed and reverse input voltage polarity to reverse direction-Control drive completely using power source
Constructed with chemical-resistant epoxy-coated steel motor housing for IP52 rating
Accepts up to 2 pump heads
