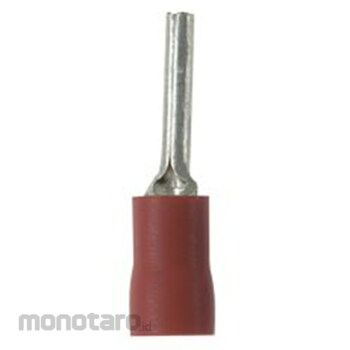

Panduit Vinyl Insulated Pin Terminal PV18-P47-CY Red 12.4mm 1pack(100pcs)
Rp1.199.900
Persediaan
Spesifikasi Produk
| Model Number | PV18-P47-CY |
|---|---|
| Unit | 1pack(100pcs) |
| Pin Length (mm) | 12.4 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Brazed |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Overall Length (mm) | 24.6 |
| Packaging Type | Bottle |
| For use with | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Pin Diameter (mm) | 1.8 |
| Max-Min Metric Conductor Size (mm²) | 1/0.5 |
| Insulation Material | Vinyl |
| Max-Min Copper Conductor Size (AWG SOL) | #18 - #22 |
| Max-Min Copper Conductor Size (AWG STR) | #18 - #22 |
| Maximum Wire Size (AWG) | 22 - 18 AWG |
| Wire Strip Length (mm) | 7.9 |
| Flammability Rating | UL94-V0 |
| Standards Met | UL486A/B |
| Maximum Voltage (V) | 600 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 27 June 2023 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection Insulation support helps to prevent wire damage in bending applications Internal barrel serrations assure good wire contact and maximum tensile strength
