Version:

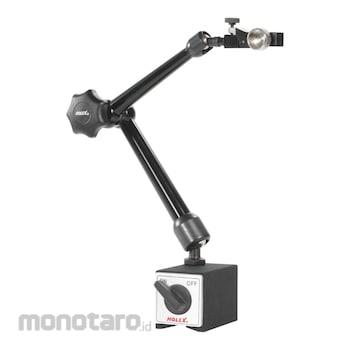

Mechanical magnetic measuring stand with central locking mechanism. All three joints are clamped in a single action. Continuously adjustable clamping force with high stability. Ball joints enable quick and easy positioning. Magnetic base with rotary switch and Vee sole. Standard dial indicator mounting for clamping shank Ø 6 mm, Ø 8 mm and dovetail, fine adjustment at the indicator holder.
HOLEX Magnetic Measuring Stand 441180 290 with Fine Adjustment at the Column 1pc
Rp1.699.900
Persediaan
Spesifikasi Produk
| Model Number | 441180 290 |
|---|---|
| Unit | 1pc |
| Type of Product | measuring stand |
| Length of Jointed Arm L1 (mm) | 149 |
| Length of Jointed Arm L2 (mm) | 129 |
| Connection Thread at Bottom | M8 |
| Magnetic Force (N) | 800 |
| Maximum Loading (kg) | 8 |
| Magnetic Base Length (mm) | 80 |
| Magnetic Base Width (mm) | 50 |
| Magnetic Base Height (mm) | 55 |
| Throat (mm) | 349 |
| Berat (Kg) | 0.9 |
| Tanggal Produk Terdaftar | 16 June 2023 |
| Terakhir Diperbaharui | 27 May 2025 |
