Jembo Power Cable NYYHY Series (Kabel Listrik) Heavy Thermoplastic Flexible 450/750 (AC)5x10mm² 1roll(100m)

Name: Jembo Power Cable NYYHY Series (Kabel Listrik) Heavy Thermoplastic Flexible 450/750 (AC)5x10mm² 1roll(100m)
Brand: Jembo
SKU: S036546886
Price: 24999900 IDR
Availability: InStock
Rating: 100 (1 reviews)

#Nomor SKU S036546886

Wishlist

Rating:

100% of 100

(1)

1 Ulasan

Spesifikasi Produk

Unit	1roll(100m)
Number of Cores	5
Nominal Cross Section Area (mm²)	10
Rated Voltage (V)	450/750 (AC)
Insulation Thickness (mm)	1
Outer Sheath Thickness (mm)	1.6
Overall Diameter (mm)	19.7
DC Resistance for Conductor (ohm/km)	1.91 (at 20°C)
Conductor Material	Plain Annealed Copper Wire
Insulation Material	PVC
Outer Sheath Material	PVC (Black Color)
Core x Size (mm²)	5x10
Berat (Kg)	92.0
Tanggal Produk Terdaftar	08 June 2023
Terakhir Diperbaharui	06 February 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Construction :
1. Conductor : Plain Annealed Copper Wire
2. Insulation : Polyvinyl Chloride
3. Colour Code : Colour Coding ( see table )
4. Outer Sheath : Polyvinyl Chlorida ( Black Colour )
5. Cable Marking : Manufacture name ( JEMBO CABLE )

Symbol NYYHY
Applicable Standard :
Rated Voltage : 450/750 Volts
Min bending radius static : 8 x cable diameter
Test voltage : 2500/5V/min

Warning

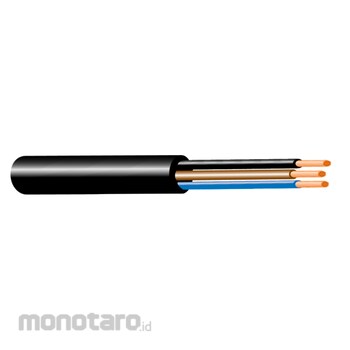

Image on this page only as Representative Image, Please check the specifications of each size and color for details

Use

These cable are suitable for flexible connection and control cable for heavy mechanical stresses with free movements without tensile stress, in dry and wet location, as wiring cable for measuring and controlling in tool machinary, production line plant installation, conveyer belt, air conditioning and rolling mills.
