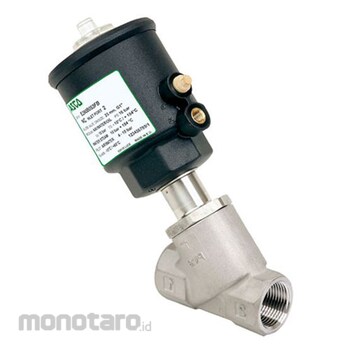

ASCO Pressure Operated Valve E290 A083 Stainless Steel 1.5inch 1pc
Rp7.299.900
Persediaan
Spesifikasi Produk
| Model Number | E290 A083 |
|---|---|
| Unit | 1pc |
| Material | Stainless Steel |
| Pipe Size (inch) | 1.5 |
| Orifice Size (mm) | 40 |
| Flow Coefficient Kv | 52.02/45 |
| Function | 2/2 Normally Closed |
| Port Type | ISO 228/1 |
| Media | Steam, Air, Inert Gas |
| Max. Operating Pressure (Air) (bar) | 0 - 10 |
| Max. Operating Pressure (Steam) (bar) | 0 - 10 |
| Maximum Ambient Temperature (°C) | -10 - 60 |
| Maximum Fluid Temperature (°C) | -10 - 184 |
| Product Type | Pressure Operated Valve |
| Valve Actuation | Pressure Operated |
| Berat (Kg) | 2.9 |
| Tanggal Produk Terdaftar | 05 June 2023 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Proven durability in handling aggressive fluids such as steam, hot water, solvents, and light slurries- Optional features include position indication and proportional control
- Rugged water-tight actuator made from tough fiber composite and protected with a double O-ring seal
- Spring-loaded stem seal: FKM fluoroelastomer wiper keeps harmful grit way from the stem area for exceptional durability
- Smooth stem movements guided by two oversized bearings for maximum reliability
- Anti-water hammer design: fluid passes under the disc resulting in slower closure
- Some versions are compatible with FDA CFR21 for food and beverage applications
