A small, low-priced and highly practical limit switch.
The head, box, and cover use an uneven interlocking method to maintain robustness.
The unique head structure allows for a large OT and smooth operation.
The box has an open conduit opening for easy wiring work.
CCC standard certified.

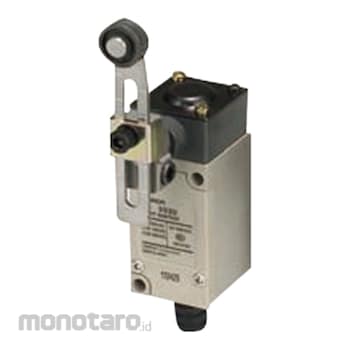

OMRON Small Limit Switch HL-5000 HL-5030 1pc
Rp1.299.900
Persediaan
Spesifikasi Produk
| Model Number | HL-5030 |
|---|---|
| Unit | 1pc |
| Withstand Voltage | (Between terminals of the same polarity) AC1000V 50/60Hz 1min (Between live metal part and earth) AC1500V 50/60Hz 1min (Between each terminal and non-current metal parts) AC1500V 50/60Hz 1min |
| Allowable Operation Frequency (times/minute) | (mechanical)120 (electrical)30 |
| Actuator Type | Variable roller lever type |
| Inrush Current (A) | (Always closed circuit) Maximum 24, (Always open circuit) Maximum 12 |
| Kegunaan | Ideal for printing machines, molding machines, light machinery, etc. |
| Protection Class | IP65 |
| Rated Frequency (Hz) | 50/60 |
| Insulation Resistance (MΩ) | 100 or more (at DC500V megger) |
| Operating Ambient Temperature (°C) | -10 to 65 (but no freezing) |
| Impact Resistance Durability (m/s²) | 1000 or more |
| Ambient Humidity (%RH) | 35～95 |
| Vibration Resistance (Malfunction) | 10～55Hz re-vibration line 1.5mm |
| Shock Resistance Malfunction (m/s²) | 300 |
| Mechanical Durability (times) | 10 million or more (subject to certain conditions) |
| Allowable Operating Speed (mm-m/s) | 5～0.5 |
| Force Required for Operation (OF) (N) | Maximum 7.35 |
| Earth Terminal | None |
| Return Force (N) | Minimum 0.98 |
| Movement After Movement (OT) (°) | Minimum 50 |
| Hysteresis Movement (MD) (°) | Maximum 12 |
| Contact Resistance for Initial Value (miliΩ) | 25 or less |
| M Code | 39075233 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 30 May 2023 |
| Terakhir Diperbaharui | 03 September 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for details.Feature
The head, the box, and the cover have an uneven meshing method to maintain durability.With ground terminal is CE marking compatible product.
