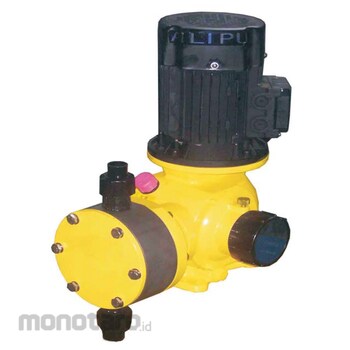

Ailipu Mechanical Diaphragm Dosing Pump JXM-A Series (Pompa Kimia) JXM-A 9/1.2 1pc

Name: Ailipu Mechanical Diaphragm Dosing Pump JXM-A Series (Pompa Kimia) JXM-A 9/1.2 1pc
Brand: Ailipu
SKU: S036343973
Price: 14999900 IDR
Availability: InStock

#Nomor SKU S036343973

Ailipu

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	JXM-A 9/1.2
Unit	1pc
Motor Power (kW)	0.37
Stroke (mm)	36
Speed (rpm)	1.2
Capacity (at 50Hz) (Lph)	9
Capacity (at 60Hz) (Lph)	10.8
Maximum Pressure (bar)	12
Diameter Plunger (mm)	144
Connection size	DN 8
Motor Voltage (V/Hz)	220-380
Measuring Accuracy Reaches (%)	±1
Temperatures of Liquid (°C)	-10 to 40
Maximum Suction (m)	2
Material	Pump Head : PVC,PVDF, Stainless; Diapragm : PTFE; Valve Ball : Ceramic; Valve Seat : PVC,PVDF, Stainless; Valve Cover : PVC,PVDF, Stainless; Valve Gasket : FPM/PTFE
Berat (Kg)	20.0
Tanggal Produk Terdaftar	30 May 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The JXM-A series of dosing pumps offer the high performance with the capacity up to 1200L/H and with outstanding values for pressure applications up to 12 Bar. This series dosing pump is designed for durability and cost effectiveness, which is welcome to be unsed in lots of lines, such as the water treatment, chemical, power, food and beverage, paper, textile etc

Warning

Image on this page only as Representative Image, Please check the specifications of each size and the Model Number Information for details.

Feature

- Mechanical Actuated Diaphragm
- Changeable eccentric drive
- Power off seal, no leakage, with security delivery
- Small size in simple structure

Control
- Manual adjustment aof the stroke
- Stroke actuator
- Digital controller

Other
- It can be used to transport the goods which is high viscosity, corrosive or dangerous
- Diaphragm rupture detection system (Double diaphragm)
