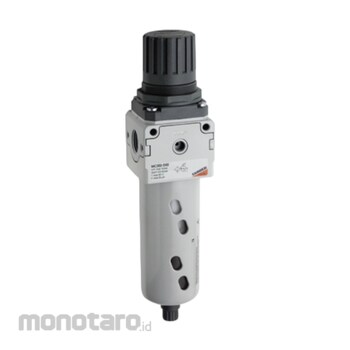

Camozzi Filter-Regulator Series MC MC104-D00 1pc

Name: Camozzi Filter-Regulator Series MC MC104-D00 1pc
Brand: Camozzi
SKU: S035932116
Price: 1599900 IDR
Availability: OutOfStock

#Nomor SKU S035932116

Camozzi

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	MC104-D00
Unit	1pc
Material	Zama, NBR, technopolymer
Dimension D (mm)	38
Dimensions e (mm)	11
Dimensions h (mm)	4.5
Dimensions m (mm)	45
Dimensions r (mm)	3
Dimension I (mm)	28
Dimensions f (mm)	126.5
Dimensions g (mm)	27.5
Operating Temperature (°C)	-5 to 50 at 10 bar (with the dew point of the fluid lower than 2 at the min. working temperature)
Mounting	Vertical in-line or wall-mounting
Inlet Pressure (Bar)	With standard drain and protected depressurisation 0.3 to 16, with depressurisation 0.3 to 10, with automatic drain 1.5 to 12 for G3/8 and G1/2
Outlet Pressure (Bar)	0.5 to 10(standard), 0 to 2; 0 to 4 e 0.5 to 7
Finishing	Enamelled
Condensate Capacity (cm³)	28
Quality of Delivered Air According to (ISO 8573-1:2010)	Class 6.8.4 with 5μm filtering element , Class 7.8.4 with 25μm filtering element
Draining of Condensate	Semi-automatic manual (standard), automatic, with depressurisation, protected depressurisation, without drain with port G1/8
Fluid	Compressed air
Construction	Compact modular with filtering element in HDPE
Ports	G1/4; G3/8; G1/2
Berat (Kg)	1.0
Tanggal Produk Terdaftar	18 April 2023
Terakhir Diperbaharui	27 May 2025
