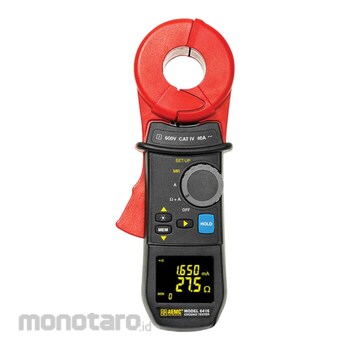

AEMC Ground Resistance Tester 6416 1unit

#Nomor SKU S035254041

Spesifikasi Produk

Model Number	6416
Unit	1unit
Operating Temperature (°C)	-20 to +55
Dimensions (inch)	2.16 x 3.74 x 10.31
Storage Temperature (°C)	-30 to +70
IP Rating	IP40
Current Range (mA)	0.200 to 0.999;1.000 to 2.990;3.00 to 9.99;10.00 to 29.99;30.0 to 99.9;100 to 299.9;300 to 990;1.000 to 2999;3000 to 3999
EMC	EN 61326-1
Safety Compliance (V)	IEC 61010-1, EN 61010-2-30, EN 61010-2-32, Pollution Degree 2, 600 CAT IV
Jaw Opening (inch)	1.38 max
Alarm	3 separate alarms (Ω, V and A)
Relative Humidity (%)	Up to 90 @ 40℃
Memory	300 measurements
Ground Resistance Range (ohm)	0.010 to 0.099;0.10 to 0.99;1 to 49.9;50.0 to 99.5;100 to 199;200 to 395;400 to 590; 600 to 1150;1200 to 1500
Ground Resistance Resolution (ohm)	0.010 to 0.099 = 0.001;0.10 to 0.99 = 0.01;1 to 49.9 = 0.1;50.0 to 99.5 = 0.5;100 to 199 = 1;200 to 395 = 5;400 to 590 = 10; 600 to 1150 = 50;1200 to 1500 = 50
Maximum Overload	Permanent current: 100 max. 50/60Hz;Transient current: (
Alarm Resistance Threshold (ohm)	Adjustable from 1 to 199
Frequency Selection (Hz)	Choice of 50, 60, 128, or 2083 for impedance calculation
Current Resolution	0.200 to 0.999 = 0.001;1.000 to 2.990 = 0.01;3.00 to 9.99 = 0.01;10.00 to 29.99 = 0.1;30.0 to 99.9 = 0.1;100 to 299.9 = 1;300 to 990 = 1;1.000 to 2999 = 10;3000 to 3999 = 10
Battery Life	12 hours or 1440 30-seconds tests approx.
Display	OLED, 152 segments 48x39mm
Power Supply	4x1.5V LR6 (AA) alkaline batteries or 4 NiMH batteries
Berat (Kg)	0.9
Tanggal Produk Terdaftar	03 February 2023
Terakhir Diperbaharui	27 May 2025
