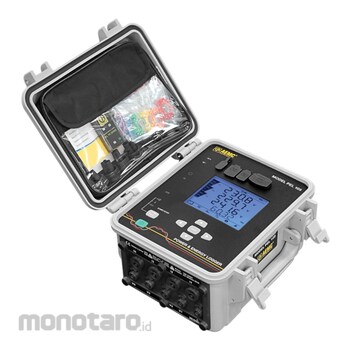

AEMC Waterproof Power and Energy Logger PEL 105 without Sensor 1unit
Rp179.999.900
Persediaan
Spesifikasi Produk
| Model Number | PEL 105 |
|---|---|
| Unit | 1unit |
| Operating Temperature (°C) | 0 to +42.5 from 10 to 85% RH |
| Storage Temperature (°C) | -20 to +50 from 0 to 75% RH with battery pack |
| Memory | 8GB SD card (SDHC compliant, FAT32 formatted) 32GB max |
| Case | Design Rugged field case |
| Sample Rate (kHz) | 6.4 at 50Hz; 7.68 at 60Hz; 128 per Cycle |
| Measurement Range Volt (V) | 1000 P to N = 10 to 1000, 1000 E to N = 10 to 1000, 1000 P to P = 17 to 1000 |
| Resolution Volt (V) | 1000 P to N = 0.1, 1000 E to N = 0.1, 1000 P to P = 0.1 |
| Accuracy Volt | 1000 P to N =±0.2% Rdg +0.2V1000 E to N =±0.2% Rdg +0.2V1000 P to P = ±0.2% Rdg + 0.4V |
| AmpFLEX & MiniFlex (including sensor accuracy) (A) | Range 100 = 200mA to 120;Range 400 = 5 to 440;Range 2000 = 50 to 2400;Range 10000 = 400A to 12kA |
| Resolution AmpFLEX & MiniFlex (including sensor accuracy) (A) | Range 100 = 1mA;Range 400 = 0.1;Range 2000 = 0.1 & 1Range 10000 = 1 |
| Accuracy Amps @ 50 and 60Hz (%) | Range 100A = ±1.2 Rdg + 50mA;Range 400A = ±1.2 Rdg + 0.2A;Range 2000 = ±1.2 Rdg + 1A;Range 10000 = ±1.2 Rdg + 5A |
| Interface | Isolated USB, Bluetooth, and Ethernet, Wi-Fi, SD card for direct transfer to PC. Dataview software for real time data, configuration and reporting included |
| Display (inch) | LCD with backlight 4.2 x 3.3 |
| Real Time Clock | Time and date stamp for Trend mode |
| Power | Phase to phase or phase to neutral 100 to 1000 AC or external power pack 110V/230V 50/60Hz 15V A; Battery backup when power OFF, 60 minutes typical |
| Dimensions (LxWxH) (inch) | 9.65 x 10.6 x 7.1 |
| Altitude Operating (ft) | 6552 |
| Electro-Magnetic-Compatibility (EMC) | EN 61326-1 for emission and immunity |
| IP Rating | IP 67 per IEC 60529 |
| Berat (Kg) | 4.2 |
| Tanggal Produk Terdaftar | 03 February 2023 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
Measurement Range Amps @ 50 and 60Hz (1V nominal) (excluding clamp accuracy) (V) : Probe dependentKetentuan dan Kondisi Barang
