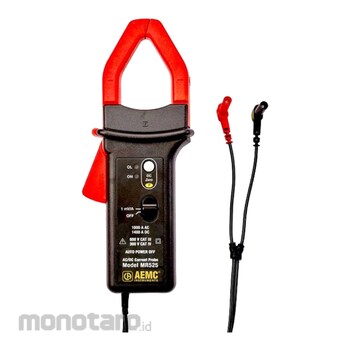

AEMC AC/DC Current Probe MR525 1unit

#Nomor SKU S035253341

Spesifikasi Produk

Model Number	MR525
Unit	1unit
Maximum Conductor Size (inch)	Cables: One 1.5 or two 1;Bus Bar: One 1.97 x .49 or two 0.98 x 0.2; 1.24 x .30 or three 0.98 x 0.31 (25 x 8mm)
Load Impedance	>1MΩ and ≤100pF
Overload (A)	3000 DC or 1000 AC continuous for < 1kHz
Power Supply	9V alkaline Battery (NEDA 1060A, 6LR61) or 5V DC Micro-USB type B
Operating Temperature (°C)	-10 to +55
Zero Adjust	Automatic on both ranges
Low battery indicator	Green LED blinking
Overload Indication	Red LED on when measurement > than selected range
Dimensions (HxWxD) (inch)	8.82x3.82x1.73
Storage Temperature (°C)	-40 to +80
Current Range (A)	0.5 to 1000 AC, 1400 DC
Ingress Protection (IP)	IP 40
EMC	EN 61326-1
Safety Compliance (V)	IEC 61010-1, EN 61010-2-32, Pollution Degree 2, 600 CAT III
Battery Life	50H typical
Relative Humidity (%RH)	Up to 85 @ 35℃
Output Signal (mV/A)	1 via a 5 ft lead with 4 mm safety banana plugs
Accuracy 50/60Hz (%)	≤2.5 @ 800A
Frequency Range (Hz)	DC to 30000 (-3dB) (depending of current value)
Phase Shift At 50Hz (A)	≤1.5°@ 800
Berat (Kg)	0.6
Tanggal Produk Terdaftar	03 February 2023
Terakhir Diperbaharui	27 May 2025
