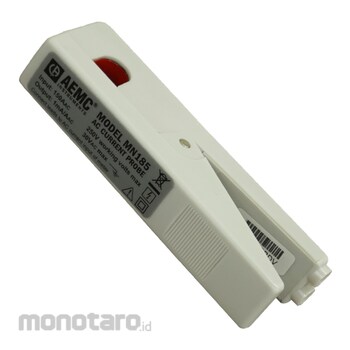

AEMC AC Current Probe MN185 1unit

#Nomor SKU S035253082

Spesifikasi Produk

Model Number	MN185
Unit	1unit
Load Impedance (ohm)	5 max
Dimensions (HxWxD) (inch)	1.26 x 4.5 x 0.87
Operating Temperature (°C)	-25 to +50
Storage Temperature (°C)	-40 to +80
Output Signal (mA)	1 AC/AAC (120 @ 120A)
Accuracy 50/60Hz	1% R ± 0.01A (typical)
Phase Shift at 50/60Hz	<3.5°
Rating	UL 94 V0
Current Range (A)	120rms AC
Transformation Ratio	41.6673611111111
Measurement Range (A)	50mA to 120 AC
Maximum Clamping Diameter (inch)	0.47
Output (ft)	5 lead with 4mm safety banana plug
Frequency Range (Hz)	30 to 10000
Safety (V)	250 working voltage, 30 max common mode between output and ground, 3kV 50/60Hz dielectric for 1mm. This probe is not CE marked.
Berat (Kg)	0.6
Tanggal Produk Terdaftar	03 February 2023
Terakhir Diperbaharui	27 May 2025
