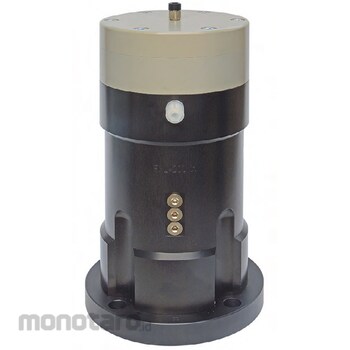

Findeva Knocker Linear In FKL-100 IN 1pc

Name: Findeva Knocker Linear In FKL-100 IN 1pc
Brand: Findeva
SKU: S035204855
Price: 19999900 IDR
Availability: InStock

#Nomor SKU S035204855

Findeva

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	FKL-100 IN
Unit	1pc
Dimension A (mm)	Ø 89
Dimension B (mm)	225
Dimension C (mm)	90
Dimensions d (mm)	130
Dimension E (mm)	50
Dimension F (mm)	100
Dimension G (mm)	13
Dimension H (mm)	20
Min. Operation Pressure (bar)	Control Bores No. 1 : 4.0, No. 2 : 5.0, No. 3 : 6.5
Operation Pressure Single Impact (bar)	2.0-7.5
Energy Impact (N m)	10-70
Impact/Impulse (N m)	2.1-14.7
Stroke (minute-1)	Max. 10
Air Consumption (L/impact)	0.5-1.1
Wall Thickness (mm)	7
Berat (Kg)	4.5
Tanggal Produk Terdaftar	20 January 2023
Terakhir Diperbaharui	16 December 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Knocker ‹FKL in›
Variable impact force and interval.

Properties
- Single or interval impact mode
- Variable impact force and interval
- Lubrication-free
- Flexible range of application
- Applicable up to 120°C, HT version up to 150°C and LT version down to -40°C on request
- Also available with ATEX certification

Field of application
Wide field of application. Resistant against extreme environmental conditions and in wet and explosive environments. Best for knocking off adhering material from container walls such as silos, chutes, filter outlets, reactors and pipelines.

Construction
A piston is forced against a spring by compressed air. With rapid rapid bleeding, the piston bounces against a baffle plate.

Interval impact mode
The impact depends on the interval time which is set by a throttle valve.
The force is adjusted by the three control bores 1 - 3.

Warning

Image on this page only as Representative Image, Please check the specifications of each model number for details
