Ordering Code : MEX3-D50.K27/ 0751
Product : MEX Industrial Pressure Gauge (MEX)
Dimension : Nominal Size 63 mm (3)
Case : Bottom Connection (D)
Process Connection : 1/4 - 18 NPT (5)
Damping Fluid : Dry (0)
Measuring Range : 0 – 40 Bar & PSI (K27)
Option : Window Material Safety Glass (0751)

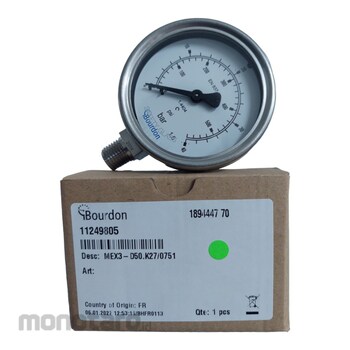

BAUMER Pressure Gauge MEX3-D50.K27/0751 with Calibration Certificate KAN ISO 17025 0-40bar 1unit
Rp1.199.900
Persediaan
Spesifikasi Produk
| Model Number | MEX3-D50.K27/0751 |
|---|---|
| Unit | 1unit |
| Case Material | Stainless Steel 1.4301 / AISI 304 |
| Type of Housing | Bayonet (Removable Bezel Ring) |
| Bezel Ring Material | Stainless Steel 1.4301 / AISI 304 |
| Window Gasket | Elastomer |
| Protection Rating (EN 60529) | IP65 |
| Dial | White, Aluminium |
| Pointer | Black, Aluminium |
| Movement Material | Stainless Steel |
| Temperature (°C) | - Ambient Temperature : -20 to +70 - Storage Temperature : -40 to +70 |
| Process Connection Material & Bourdon Tube | Stainless Steel 1.4404 / AISI 316L |
| Accuracy According to EN 837-1 | Class 1.6 |
| Type of Pressure | Gauge |
| Pressure Limitation | - Steady : 75 % of Full scale value - Fluctuating : 65 % of Full Scale Value - Short Time : 100 % of Full Scale Value |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 21 December 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
GRATIS ONGKIR* ke Jabodetabek, Banten,
Jabar & Jatim dengan minimum total pesanan Rp200.000 saat checkout. Lihat selengkapnya
Jabar & Jatim dengan minimum total pesanan Rp200.000 saat checkout. Lihat selengkapnya
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Ulasan Produk
Tidak ada ulasan
