SV rotary vacuum pump
SV series single stage rotary vane vacuum pump is a kind of reliable, durable, economic and
applicable range of vacuum equipment.
In the circular pump body, it has an air suction valve and exhaust valve (stator). Thee vanes are
equipped with an eccentric rotor slot in the rotor, the vane blades divided the pump chamber into
three parts. The volume of the pump chamber keep changing periodically as the rotation of the rotor
to finish the process of gas suction, compression and elimination, so that the suction the gas/air from
the inlet hole.

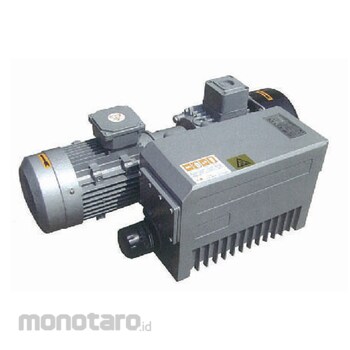

INNOVAC Rotary Vane Vacuum Pump SV-040 1unit
Rp24.999.900
Persediaan
Spesifikasi Produk
| Model Number | SV-040 |
|---|---|
| Unit | 1unit |
| Pump Speed (m³/hour) | 50Hz : 40, 60Hz : 48 |
| Ultimate Vacuum (Pa) | 50 |
| Motor Power (kW) | 1.5 |
| Inlet Diameter (inch) | G 1 1/4 |
| Rotation Speed (rpm) | 1400 |
| Oil Capacity (L) | 1.0 |
| Noise (dBA) | 67 |
| Dimensions (mm) | 660x300x270 |
| Berat (Kg) | 48.0 |
| Tanggal Produk Terdaftar | 13 December 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya. Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.Feature
Food Industry, Vacuum Packaging, Material drying, Car industry, Furnances and plants, Chemical, Laser technology, Medical technology, Metallurgy, Power engineering, Space simulation, Vacuum coating, vacuum loading, Electronics, Semiconductor,
Scientific research
Advantage :
- High ultimate vacuum degree, less than 0.5 mbar
- High pumping speed
- Low operating noise, less than 66 dB(A)
- Good capability of pumping or eliminating water vapor
- When the inlet pressure 1.33 x 103 Pa, it still can work continuously
- Environmental-friendly; Equipped with oil mist eliminator can remove 99.99% of the
exhaust gas oil.
- Compact structure; scientific and reasonable design; convenient Installation
