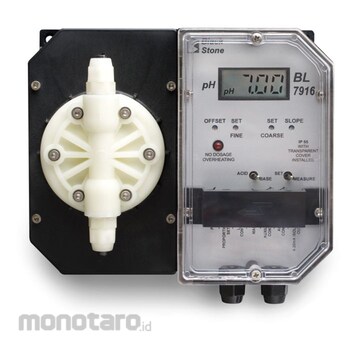

Hanna Instruments pH Controller and Pump BL7916-2 1unit

pH controller and dosing pumps in one compact unit.
±0.01 pH accuracy with unbeatable performance.
Isolated 4 to 20 mA recorder output.
Proportional dosing slows the pump down when the measured pH level approaches the set valve which ensures precise dosage and avoids costly waste of chemicals due to over dosage.
Alarm contact is activated whenever the pH value varies more than 2 pH units from the set point.
Auxiliary contacts allow the user to attach a mixer or priming pump that is activated only when the pump is dosing.
High Quality materials are used for all parts that come into contact with liquid.
Order Information:
The BL 7916 series is supplied with discharge and suction valves, polyethylene tubing, power cable and instructions.
Range
0.00 to 14.00 pH
Resolution

0.01 pH
Accuracy
pH
±0.01 pH
Flow Rate

13.3, 11.7, 10.1, 9.0, 7.8 (LPH)
Input Impedance

1012 Ohm
Dosage

proportional, acid or base, user selectable
Calibration

offset: ±1 pH with trimmer; slope: 85 to 115% with trimmer
Recorder Output

4-20 mA (isolated)
Dosing Contact

1 isolated contact, 2A, Max. 240V, resistive load, 1,000,000 strokes
Alarm Contact

1 isolated contact, 2A, Max. 240V, resistive load, 1,000,000 strokes
Power Supply

See Chart
Environment

0 to 50°C (32 to 122°F); RH max 95% non-condensing
Dimensions

181 x 221 x 142 mm (7.1 x 8.7 x 5.6")
Weight

5 kg (11 lb.)
