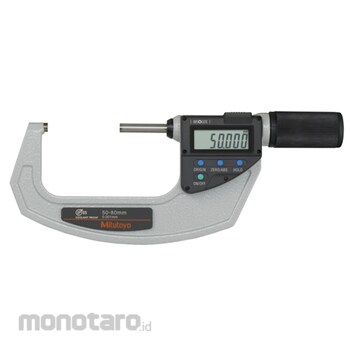

Mitutoyo Mikrometer Digital 293-668-20 MDQ-80MX 50-80/0.001mm 1pc

Name: Mitutoyo Mikrometer Digital 293-668-20 MDQ-80MX 50-80/0.001mm 1pc
Brand: Mitutoyo
SKU: S034670347
Price: 9999900 IDR
Availability: OutOfStock
Rating: 100 (1 reviews)

#Nomor SKU S034670347

Wishlist

Rating:

100% of 100

(1)

1 Ulasan

Spesifikasi Produk

Model Number	293-668-20
Unit	1pc
Size (mm)	50-80/0.001
Digital Step (mm)	0,001
Display	LCD
Data Output	Yes
Dimensions (mm)	L: 50, a: 10.3, b: 47, c: 2.8
Range Size	50-80mm
Power Supply	1 Battery SR-44
Units	Metric
Battery Life	Approx. 5 yeas
Maximum Permissible Error J MPE (µm)	±3
Flatness (µm)	0.3
Parallelism (µm)	2
Measuring Face	Carbide-Tipped, Micro-Lap Finish
Measuring Spindle	ø6,35mm, Non-Rotating, 10mm Spindle Feed
Type	Digital
Measuring Force (N)	5-12
Mitutoyo Part Number	MDQ-80MX
M Code	79686619
Berat (Kg)	0.5
Tanggal Produk Terdaftar	02 December 2022
Terakhir Diperbaharui	27 October 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

This Quickmike, with a non-rotating spindle, delivers much faster movement than standard models.
The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits:
With 10 mm feed per revolution, it delivers twenty times as fast as standard devices.Excellent resistance against water and dust (IP65) enables this micrometer to be used in machining situations that include splashing coolant fluid.ABSOLUTE linear scale means no restriction on adjustment speed.Larger measuring range - 30 mm compared with 25 mm - than standard micrometer.

Feature

- Measuring faces: Carbide. (115-201: only the spindle is carbide tipped.)
- series 395: IP65 spherical anvil and spindle type digital micrometer.
- Equipped with Ratchet Stop for constant measuring force.
