Insertion Type (brass)
QuickSeal Series
Screw-in type for multi-purpose piping
Nitta Moore 90 Degree Elbow L4N4X2-PT1/8 1pc
Rp57.000
Persediaan
Spesifikasi Produk
| Model Number | L4N4X2-PT1/8 |
|---|---|
| Unit | 1pc |
| Applicable tubing outer diameter × inner diameter (mm) | 4×2 |
| T Thread size (R) | R1/8 |

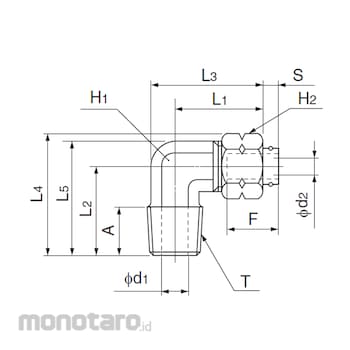

| Dimension L1 | 20.5 |
| Dimension L2 (mm) | 18.5 |
| Dimension L3 (mm) | 26.2 |
| Dimensions l4 (mm) | 24.3 |
| Dimensions l5 (mm) | 24.3 |
| Dimension A (mm) | 11 |
| Dimension S (mm) | 4.7 |
| F Tubing insertion length (mm) | 15 |
| H1 Width across flat (mm) | 10.0 |
| H2 Width across flat (mm) | 10.0 |
| Dimension D1 (mm) | 5 |
| d2 Min. inner diameter (mm) | 0.9 |
| Effective Section Area (mm²) | 0.5 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 22 November 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Screw-in typeConsisting of three parts: fitting body, nut and sleeve.
- High sealing performance
The insertion part is integrated with a fitting body with high negative-pressure
performance.
- Only the connector is sealed
Sealing tape is not required.
- JIS B 8381-1995 (fittings for pneumatic flexible pipes) compliant
