PushOne™ E Series
PushOne™ fittings for general air pressure (flame-resistant)

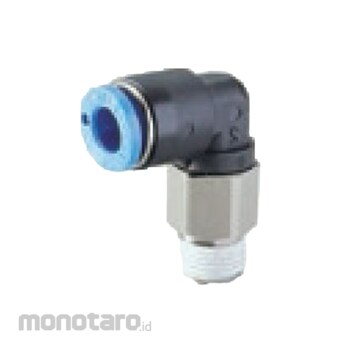

Nitta Moore 90 Degree Elbow EL6-M5-Z2 1pc
Rp49.900
Persediaan
Spesifikasi Produk
| Model Number | EL6-M5-Z2 |
|---|---|
| Unit | 1pc |
| Applicable tubing outer diameter (mm) | 6 |
| T Thread size (M,R) | M5×0.8 |
| Dimension L1 | 18.5 |
| Dimension L2 (mm) | 22.2 |
| Dimension L3 (mm) | 25.0 |
| Dimensions l4 (mm) | 28.5 |
| Dimension A (mm) | 4 |
| F Tubing insertion length (mm) | 15 |
| H×φ Width across flat (mm) | 12.0×13.0 |
| Dimension D (mm) | 12.6 |
| Dimension D1 (mm) | 2 |
| Min. inner diameter (mm) | 2.0 |
| Effective Section Area (mm²) | 3.5 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 22 November 2022 |
| Terakhir Diperbaharui | 08 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- PushOne connection of tubingThe tubes can be connected without using a jig or tools.
- Electroless nickel plated
Prevents degradation of surface and dissolution of copper ions in fluid.
- Flame-resistant resin (compliant with V-0 of UL94 standard)
Made of flame-resistant resin PBT. High self-extinguishing performance is compliant
with V-0 of UL94 standard. Usable under an environment with spatters.
- Sealing-processed R thread
Sealing tape is not required.
