Dial Gauges are widely used manufacturing plants.
•The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
•The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
•The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are waterproof
and dust-proof in construction.
•The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.

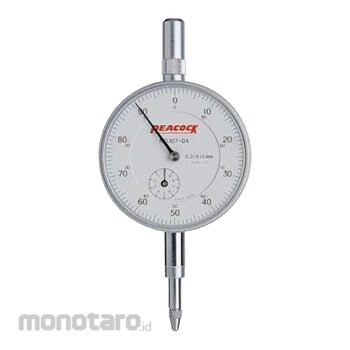

Ozaki (Peacock) Analog Dial Indicator 107-DX 1pc
Rp1.999.900
Persediaan
Spesifikasi Produk
| Model Number | 107-DX |
|---|---|
| Unit | 1pc |
| Graduation (mm) | 0.01 |
| Range (mm) | 10 |
| Reading (µm) | ±0 - 50- 100 |
| Indication Error 1/10 Revolution (µm) | 8 |
| Indication Error 1/2 Revolution (µm) | ±9 |
| indication Error 1 Revolution (µm) | ±10 |
| Indication Error 2 Revolution (µm) | ±15 |
| Indication Error Wholr Measuring Range (µm) | ±15 |
| Retrace Error (µm) | 5 |
| Repeatability (µm) | 5 |
| Measuring Force Less Than (N) | 1.4 |
| Accuracy (µm) | 5 to 15 |
| Type | Lug Back |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 17 November 2022 |
| Terakhir Diperbaharui | 16 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Durable type (Spindle Ø 5mm), Lug backKetentuan dan Kondisi Barang
