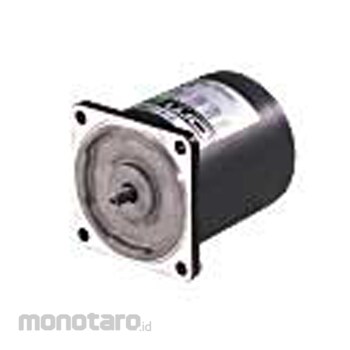

Orientalmotor Reversible Motor K Series 3RK15GN-A 1pc
Rp1.299.900
Persediaan
Spesifikasi Produk
| Model Number | 3RK15GN-A |
|---|---|
| Unit | 1pc |
| Mounting Angle Dimension (mm) | 70 |
| Capacitor | Product name: CH60, Capacitance: 6.0μF, Rated voltage: 200VAC |
| Output Power (W) | 15 |
| Starting Torque (Motor Shaft) (mN.m) | Single-phase 100V/50Hz: 90; Single-phase 100V/60Hz: 80 |
| Rated Torque/Rated Speed (Motor Shaft) (mN.m/(rpm)) | Single-phase 100V/50Hz: 125/1200; Single-phase 100V/60Hz: 100/1500 |
| Type | Lead |
| Allowable Torque Of Gearhead Output Shaft | It depends on the combined gearhead. |
| Allowable Moment of Inertia J | It depends on the combined gearhead. |
| Shaft/Gear Type | Toothed shaft |
| Time Rating (hour) | 0.5 |
| Direction of Rotation | It depends on the combined gearhead. |
| Voltage/Frequency/Current (V/Hz/A) | Single phase 100/50/0.42; Single phase 100/60/0.45 |
| Rotation Speed When Gearhead Is Attached | It depends on the combined gearhead. |
| Berat (Kg) | 1.9 |
| Tanggal Produk Terdaftar | 07 November 2022 |
| Terakhir Diperbaharui | 23 September 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Accessories: Motor: motor, capacitor, instruction manual
