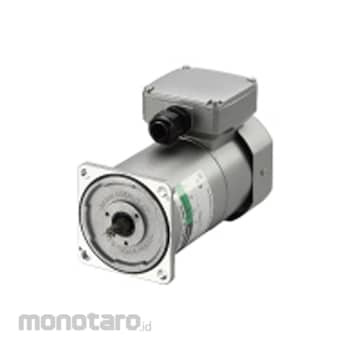

Orientalmotor Motor with Electromagnetic Brake 5RK90GVR Series 5RK90GVR-UAMT2 1pc
Rp5.199.900
Persediaan
Spesifikasi Produk
| Model Number | 5RK90GVR-UAMT2 |
|---|---|
| Unit | 1pc |
| Mounting Angle Dimension (mm) | 90 |
| Capacitor | Product name: CH250CFAUL2, Capacitance: 25μF, Rated voltage: 250VAC |
| Overheat Protector Type | Thermal protector (automatic reset type) |
| Shaft Material | Iron |
| Electromagnetic Brake | Yes |
| Output Power (W) | 90 |
| Starting Torque (Motor Shaft) (mN.m) | Single-phase 110V/60Hz: 690; Single- phase 115V/60Hz: 730 |
| Rated Torque/Rated Speed (Motor Shaft) (mN.m/(rpm)) | Single-phase 110V/60Hz: 550/1570; Single-phase 115V/60Hz: 550/1570 |
| Type | With terminal box |
| Shaft/Gear Type | Toothed shaft |
| Time Rating (hour) | 0.5 |
| Direction of Rotation | It depends on the combined gearhead. |
| Electromagnetic Brake Part Model | Non-excitation actuation type |
| Electromagnetic Brake (V/Hz/A/W) | Single Phase 110/60/0.09/7; Single Phase 115/60/0.09/7; |
| Voltage/Frequency/Current (V/Hz/A) | Single phase 110/60/1.55; Single phase 115/60/1.57 |
| Electromagnetic Brake Static Friction Torque (Motor Shaft) (mN.m) | 500 |
| Berat (Kg) | 4.2 |
| Tanggal Produk Terdaftar | 07 November 2022 |
| Terakhir Diperbaharui | 23 September 2025 |
