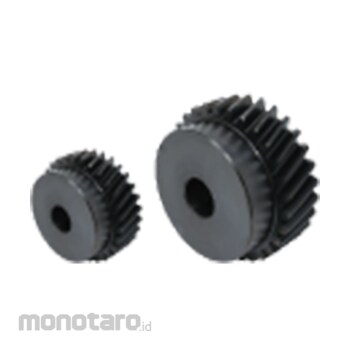

KHK Helical Gear SHE2-24L 1pc

#Nomor SKU S034102473

Spesifikasi Produk

Model Number	SHE2-24L
Unit	1pc
Gear accuracy	JIS N8 class
Number of Teeth	24
Torsion Angle	19°31'41"
Frontal Pressure Angle (°)	20
Twist direction	L
Shape	S1
Hole Diameter (mm)	15
Boss Diameter (mm)	45
Standard Circle Diameter (mm)	50.93
Tip Circle Diameter (mm)	56
Face Width (mm)	25
Gear Reference Cross Section	Normal Angle
Tooth Finish	Cutting
Tooth Profile	Straight Teeth
Shift Coefficient	0.268
Module	2
Surface Hardness	194HB or less
Finish Material	S45C
Gear Reference Surface	Hole (H7)
Surface Treatment	Black dye
Accuracy class	JIS B 1702 Class 4
Assembly Distance (mm)	48
Backlash (mm)	Lower limit: 0.1, upper limit: 0.22
Cell Spacing (mm)	m2 (module: CP6.667)
Gear Cutting Reference Plane	Hole (H7)
Gear Surface Treatment	Cutting
Heat treatment	None
Helix Angle	19°31′41″
Hole Diameter A (Φmm)	15
Hub Diameter (Φmm)	45
Hub Length F (mm)	16
Overall Length G (mm)	41
Spesifikasi	Alterations: possible
Spiral Angle	L
Tooth Surface Hardness	(Less than 194HB)
Tooth Type	Normal teeth
Tooth Width E (mm)	25
M Code	43549294
Berat (Kg)	0.5
