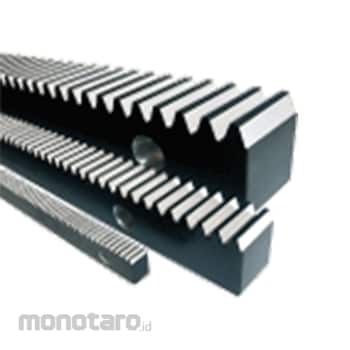

KHK Hardened Ground Gear Rack SRG6-110 1pc
Rp3.299.900
Persediaan
Spesifikasi Produk
| Model Number | SRG6-110 |
|---|---|
| Unit | 1pc |
| Gear accuracy | KHK R 001 Class 3 |
| Grind Reference Plane | Bottom |
| Shape | R1 |
| Face Width (mm) | 60 |
| Full Length (mm) | 111 |
| Tooth Finish | Grinding |
| Tooth Profile | Straight Teeth |
| Pressure Angle (°) | 20 |
| Module | 6 |
| Surface Hardness | 50-60HRC |
| Effective Number of Teeth | 4 |
| Height (mm) | 60 |
| Meshing Height (mm) | 54 |
| Allowable Transmission Force (N m) | Bending strength 34500 ; Tooth surface strength 21700 |
| Allowable Transmission Force (kgf.m) | Bending strength 3520 ; Tooth surface strength 2210 |
| Backlash (mm) | 0.05 to 0.22 |
| Material | S45C |
| Surface Treatment | Blackening other than teeth |
| Heat treatment | Tooth surface induction hardening |

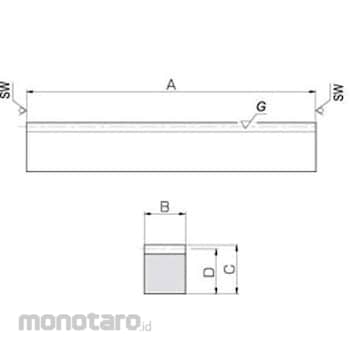

| Dimensions a (mm) | 111 |
| Modules | 6 |
| Number of Teeth | 4 |
| Pitch Height D (mm) | 54 |
| Tooth Width (mm) | 60 |
| Tooth width b (mm) | 60 |
| M Code | 37998493 |
| Berat (Kg) | 2.8 |
| Tanggal Produk Terdaftar | 08 October 2022 |
| Terakhir Diperbaharui | 25 November 2025 |
