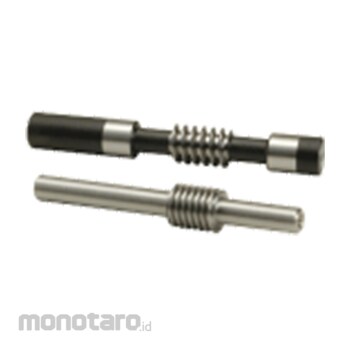

KHK Ground Worm Shaft KWG1-R2 1pc

#Nomor SKU S034061572

Spesifikasi Produk

Model Number	KWG1-R2
Unit	1pc
Gear accuracy	KHK W 001 Class 2
Grind Reference Plane	Axis H7 (grinding part)
Twist direction	R
Axial Module	1
Shaft Diameter (left) (mm)	18.2
Shaft Length (left) (mm)	35
Shape	W6
Lead Angle	7°08'
Neck Length (left) (mm)	10
Standard Circle Diameter (mm)	16
Tip Circle Diameter (mm)	18
Face Width (mm)	30
Gear Reference Cross Section	Axial Direction
Tooth Profile	Straight Teeth
Surface Hardness	50-60HRC
Normal Pressure Angle	20°
Material	SCM440
Tooth Surface Finish	Grinding
Surface Treatment	Black oxide other than the grinding part
Heat treatment	Thermal Refining, tooth surface induction hardening
Accuracy class	KNK W 001 Level 2
Gear Surface Treatment	grinding
Modules	1
Single/Multiple Start	2
Spiral Angle	Right direction
Tooth Surface Hardness	50～55HRC
Tooth Type	JIS type 3 parallel teeth
M Code	7136044
Berat (Kg)	0.2
Tanggal Produk Terdaftar	07 October 2022
Terakhir Diperbaharui	25 November 2025
