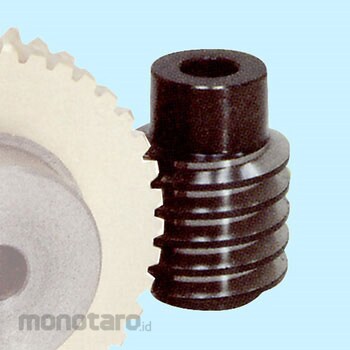

KHK Ground Worm SWG2.5-R1 1pc

#Nomor SKU S034061145

Spesifikasi Produk

Model Number	SWG2.5-R1
Unit	1pc
Gear accuracy	KHK W 001 Class 2
Grind Reference Plane	Hole (H7)
Twist direction	R
Axial Module	2.5
Advance Angle	3°52'
Shape	W3
Hole Diameter (mm)	15
Boss Diameter (mm)	30
Standard Circle Diameter (mm)	37
Tip Circle Diameter (mm)	42
Face Width (mm)	45
Gear Reference Cross Section	Axial Direction
Boss Length (right) (mm)	17
Tooth Profile	Straight Teeth
Surface Hardness	50-60HRC
Normal Pressure Angle	20°
Material	S45C
Tooth Surface Finish	Grinding
Surface Treatment	Black oxide other than the grinding part
Heat treatment	Tooth surface induction hardening
Berat (Kg)	0.4
Tanggal Produk Terdaftar	08 October 2022
Terakhir Diperbaharui	27 May 2025
