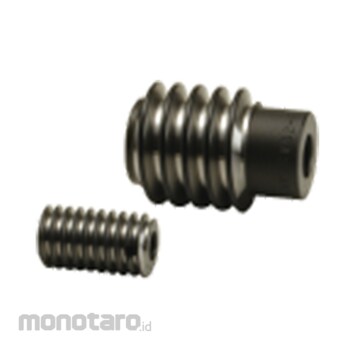

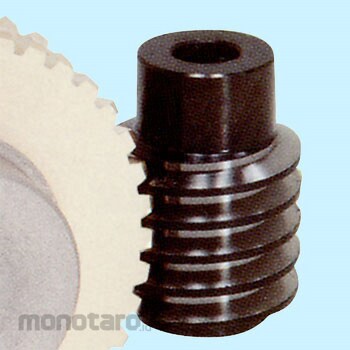

KHK Ground Worm SWG1.5-R1 1pc
Rp1.099.900
Persediaan
Spesifikasi Produk
| Model Number | SWG1.5-R1 |
|---|---|
| Unit | 1pc |
| Gear accuracy | KHK W 001 Class 2 |
| Grind Reference Plane | Hole (H7) |
| Twist direction | R |
| Axial Module | 1.5 |
| Advance Angle | 3°26' |
| Shape | W1 |
| Hole Diameter (mm) | 10 |
| Boss Diameter (mm) | 20 |
| Standard Circle Diameter (mm) | 25 |
| Tip Circle Diameter (mm) | 28 |
| Face Width (mm) | 30 |
| Boss Chief (mm) | 10 |
| Gear Reference Cross Section | Axial Direction |
| Tooth Finish | Grinding |
| Tooth Profile | Straight Teeth |
| Surface Hardness | 50-60HRC |
| Normal Pressure Angle | 20° |
| Material | S45C |
| Surface Treatment | Black oxide other than the grinding part |
| Heat treatment | Tooth surface induction hardening |
| Accuracy class | KHK W001 Level 2 |
| Gear Surface Treatment | grinding |
| Lead Angle | 3 degrees 26 minutes |
| Modules | 1.5 |
| Single/Multiple Start | 1 |
| Spiral Angle | Right direction |
| Tolerance L | H7 |
| Tooth Surface Hardness | 48～53HRC |
| Tooth Type | JIS type 3 parallel teeth |
| Tooth width P (mm) | 30 |
| Overall Length R (mm) | 40 |
| M Code | 7136193 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 07 October 2022 |
| Terakhir Diperbaharui | 25 November 2025 |
