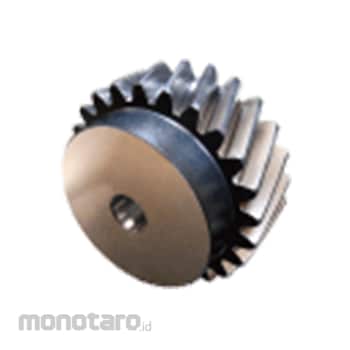

KHK Ground Helical Gear ZSTP6-20LJ45 1pc
Rp10.999.900
Persediaan
Spesifikasi Produk
| Model Number | ZSTP6-20LJ45 |
|---|---|
| Unit | 1pc |
| Gear accuracy | JIS N6 class |
| Number of Teeth | 20 |
| Torsion Angle | 19°31'41" |
| Frontal Pressure Angle (°) | 20 |
| Grind Reference Plane | Hole (H7) |
| Twist direction | L |
| Shape | S1K |
| Hole Diameter (mm) | 45 |
| Boss Diameter (mm) | 110 |
| Standard Circle Diameter (mm) | 127.32 |
| Tip Circle Diameter (mm) | 144 |
| Gear Reference Cross Section | Normal Angle |
| Tooth Finish | Grinding |
| Tooth Profile | Straight Teeth |
| Shift Coefficient | 0.39 |
| Module | 6 |
| Surface Hardness | HRC50-60 |
| Material | SCM440 |
| Surface Treatment | Black oxide other than the grinding part |
| Heat treatment | Thermal Refining, tooth surface induction hardening |
| Accuracy class | JIS B 1702-1: 1998 N6 class equivalent |
| Backlash (mm) | 0.06～0.15 |
| Boss Length (mm) | 28 |
| Helix Angle | 19°31′41″ |
| Hub Diameter (Φmm) | 110 |
| Keyway (mm) | 14×3.8 |
| Overall Length (mm) | 88 |
| Pressure Angle (°) | 20 |
| Tap Diameter | M10 |
| Tip Diameter (mm) | 144 |
| Tooth Surface Hardness | 50～60HRC |
| Tooth Type | Normal teeth |
| Tooth Width (mm) | 60 |
| M Code | 63609368 |
| Berat (Kg) | 7.3 |
| Tanggal Produk Terdaftar | 08 October 2022 |
| Terakhir Diperbaharui | 24 November 2025 |
