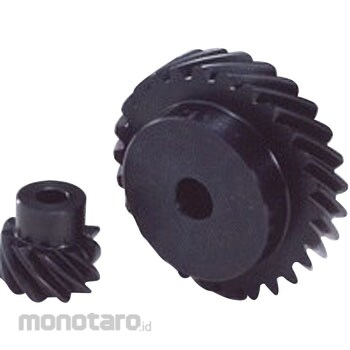

KHK Carbon Steel Screw Gear (SN2.5 Type) SN2.5-26RJ30 1pc
Rp1.799.900
Persediaan
Spesifikasi Produk
| Model Number | SN2.5-26RJ30 |
|---|---|
| Unit | 1pc |
| Gear accuracy | JIS N9 class |
| Number of Teeth | 26 |
| Torsion Angle (°) | 45 |
| Twist direction | R |
| Shape | S1K |
| Hole Diameter (mm) | 30 |
| Boss Diameter (mm) | 70 |
| Standard Circle Diameter (mm) | 91.92 |
| Tip Circle Diameter (mm) | 96.92 |
| Face Width (mm) | 22 |
| Boss Chief (mm) | 16 |
| Gear Reference Cross Section | Normal Angle |
| Full Length (mm) | 38 |
| Screw Size | M6 |
| Pressure Angle (°) | 20 |
| Gear Cutting Reference Cross Section | Hole (H7) |
| Allowable Torque (N m) | surface strength 18.8 |
| Backlash (mm) | 0.14 to 0.28 |
| Material | S45C |
| Surface Treatment | Black dye |
| Dimensions a (mm) | 30 |
| Dimension Bs (mm) | 70 |
| Dimensions c (mm) | 91.92 |
| Dimensions ds (mm) | 96.92 |
| Hole Diameter | 30 |
| Module | 2.5 |
| Shaft Hole Diameter (mm) | 30 |
| Spiral Angle | Right direction |
| Tooth Type | Normal teeth |
| Tooth Width (mm) | 22 |
| M Code | 17731035 |
| Berat (Kg) | 1.5 |
| Tanggal Produk Terdaftar | 08 October 2022 |
| Terakhir Diperbaharui | 21 November 2025 |
